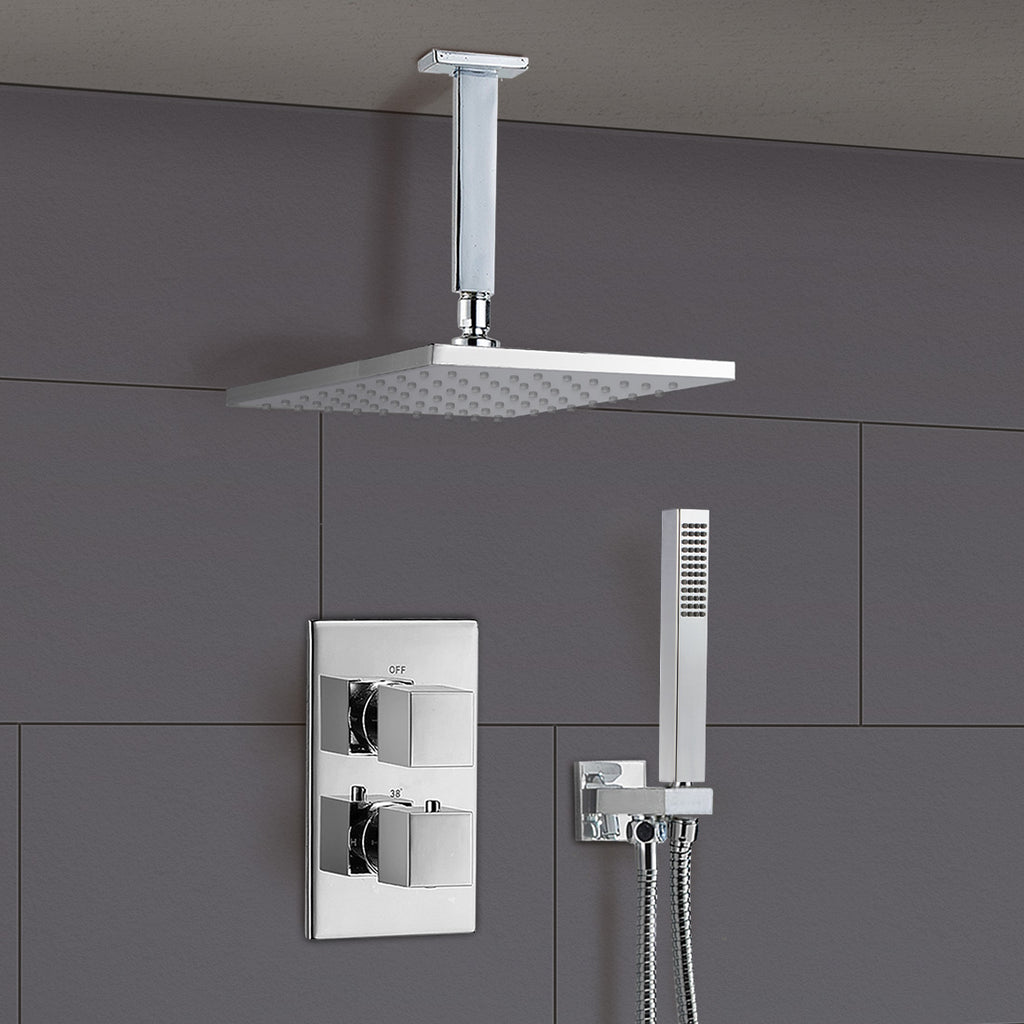

Constructed from solid brass, with modern ceramic disc technology, our stylish concealed thermostatic shower mixer valve is perfect for creating a new minimalistic look to your bathroom.
The mixer valve mounts on to the wall making your shower look less cluttered and bulky and the slim rectangular back plate neatly conceals all pipe work, adding an exceptional sleek finish.
Featuring square dials with short levers for fingertip control, the mixer valve supplies water to 2 outlet diverters and is finished in stunning chrome, leaving a silky-feel surface and a highly reflective mirror like sheen, making your taps look new for longer.
The thermostatic showering can be accessed via the 2 dial 2 way easy-to-operate dial controls - separate controls for temperature and flow; giving you full temperature control.
A coordinating fixed overhead shower with a swivel joint and arm for ease of use and a handset shower come complete with the mixer valve tap.
A fantastic 10 year warranty is also included for extra peace of mind!
Thermostatic Concealed Valve
- Top dial - controls water to 2 outlet diverters
- Bottom dial - controls water temperature
- The two outlets cannot be operated simultaneously
- Manufactured from highly durable solid brass
- Finished in chrome ensuring a high quality reflective mirror finish
- Tarnish and corrosion resistant
- Operating range 20-50ºC, with 38ºC safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Overhead Shower & Arm
- Overhead shower dimensions - 200mm x 200mm x 8mm
- Chrome plated ABS plastic overhead shower
- Solid brass 15 degrees swivel joint for ease of use
- Solid brass matching arm length - 120mm
- Finished in chrome ensuring a high quality reflective mirror finish
- UK standard size fitting
Handset Shower
- Slimline chrome plated ABS plastic handset
- Easy clean, anti-clog rubber nozzles
- Water tight construction to minimise the possibility of water leakage
- Stainless steel, flexible, braided 1.5m double interlocking shower hose
- Wall outlet bracket and handset holder
- Finished in chrome ensuring a high quality reflective mirror finish
- Easy to fit - no tools required
- UK standard size fitting
Technical Information:
Suitable for the following water systems:
- Combination boiler systems
- Gravity fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Un-vented hot water systems
- Standard pressurised hot water cylinder type systems
Package Contents:
- Thermostatic concealed valve
- Overhead shower with arm
- Handset shower with hose and bracket
