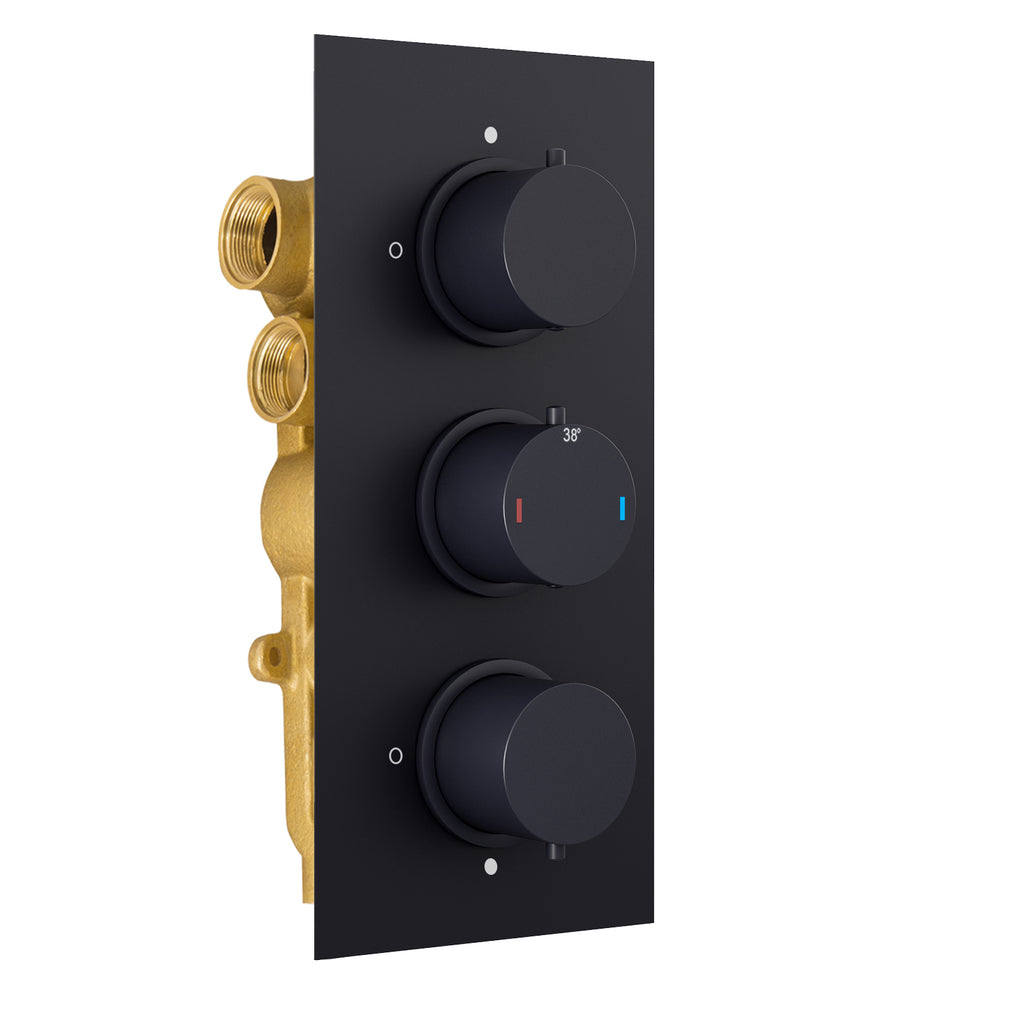

This concealed thermostatic valve will compliment any modern bathroom suite, offers thermostatic showering via three easy-to-operate controls for temperature and flow.
Thermostatic Concealed Valve Features

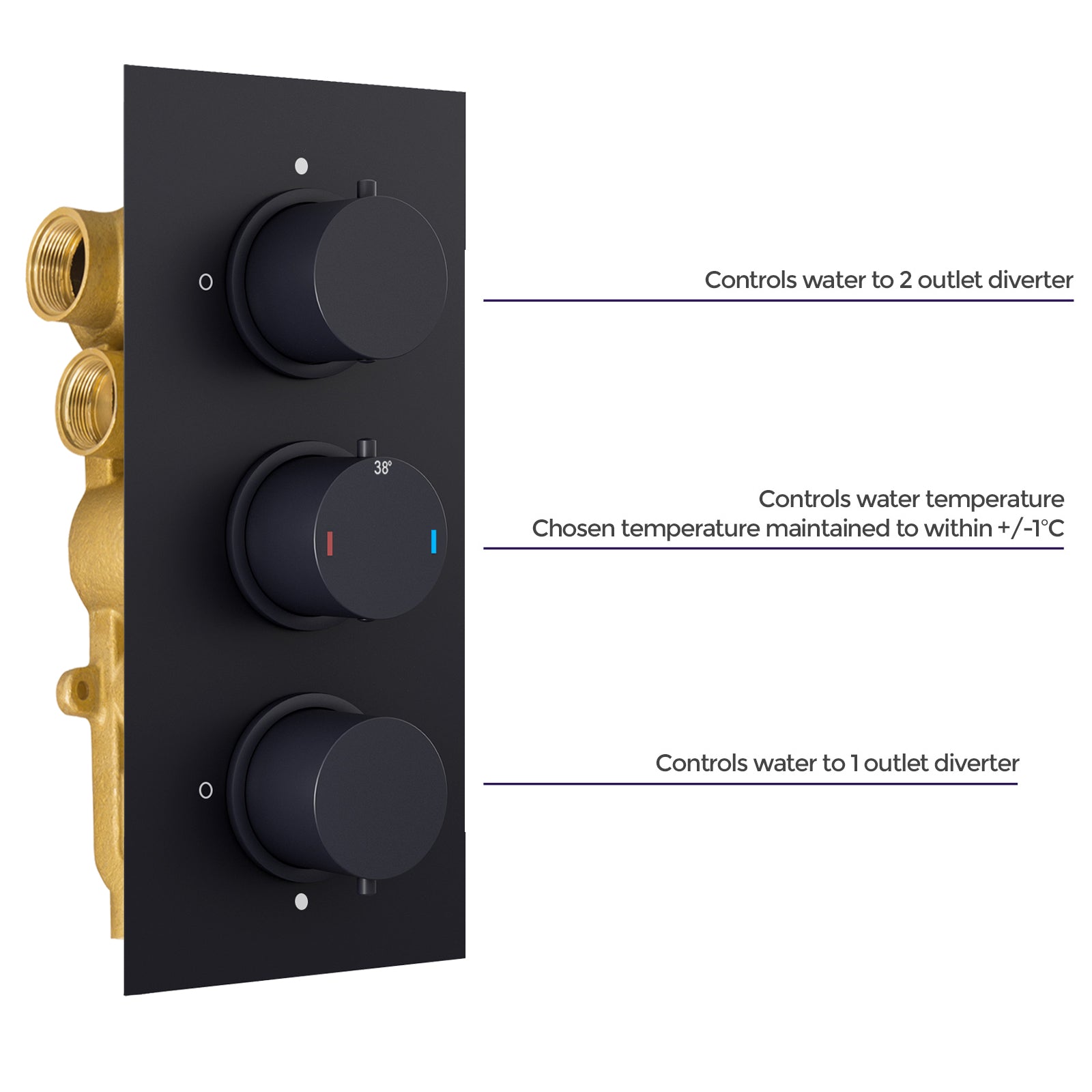

- Top dial - controls water to 2 outlet diverter
- Middle dial - temperature control
- Bottom dial - controls water to 1 outlet diverter
- High-Quality Design
- Matt Black Finish
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Technical Information
Suitable for the following water systems:
- Combination boiler systems
- Gravity-fed systems (only with a pump)
- MegaFlo systems
- Pumped hot water systems
- Unvented hot water systems
- Standard pressurised hot water cylinder type systems
Package Contents
- Thermostatic concealed valve
