Constructed from solid brass, with modern ceramic disc technology, our stylish concealed thermostatic shower mixer valve is perfect for creating a new minimalist look to your bathroom. The mixer valve mounts onto the wall making your shower look less cluttered and bulky and the slim rectangular backplate neatly conceals all pipework, adding an exceptional sleek finish.
Featuring classic round dials - the mixer valve supplies water to 2 outlet diverters and is finished in stunning matt black, leaving am, making your shower look new for longer. The thermostatic showering can be accessed via the 3 dial 2-way easy-to-operate dial controls - separate controls for temperature and flow; giving you complete temperature control. A coordinating fixed wall-mounted overhead shower with a swivel joint and arm for ease of use comes complete with the mixer valve.
Please note: This product comes with a 10-year guarantee.
Thermostatic Valve
- Top dial: controls water to 2 outlet diverter
- Middle dial: on and off control
- Bottom dial: temperature control
- Height: 285 mm
- Width: 130 mm
- Depth: 134.5 mm
- Manufactured from highly durable solid brass
- Finished in chrome ensuring a high-quality reflective mirror finish
- Tarnish and corrosion resistant
- Operating range 20-50°C, with 38°C safety button
- Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature is maintained to within +/-1°C
- Pre-set maximum temperature
- Automatic shut off in the event of water cold supply failure
- UK standard size fitting

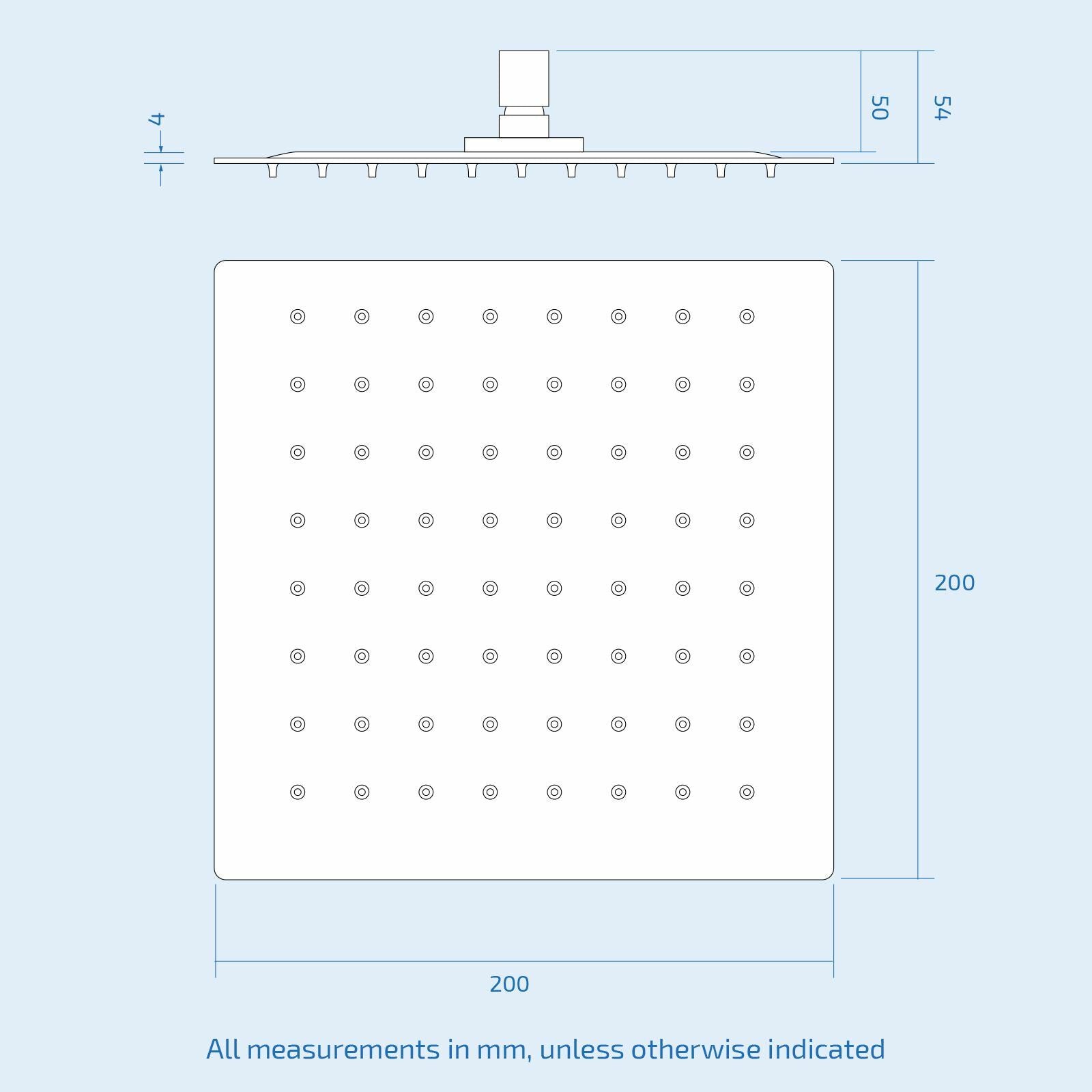

Shower Head
- Solid Brass Square Ultra Thin Shower Head
- Large 200mm Shower Head
- Height: 54mm
- Width: 200 mm
- Depth: 200 mm
- 4mm Thin Showerhead
- Swivel connection allowing tilt up to 15°

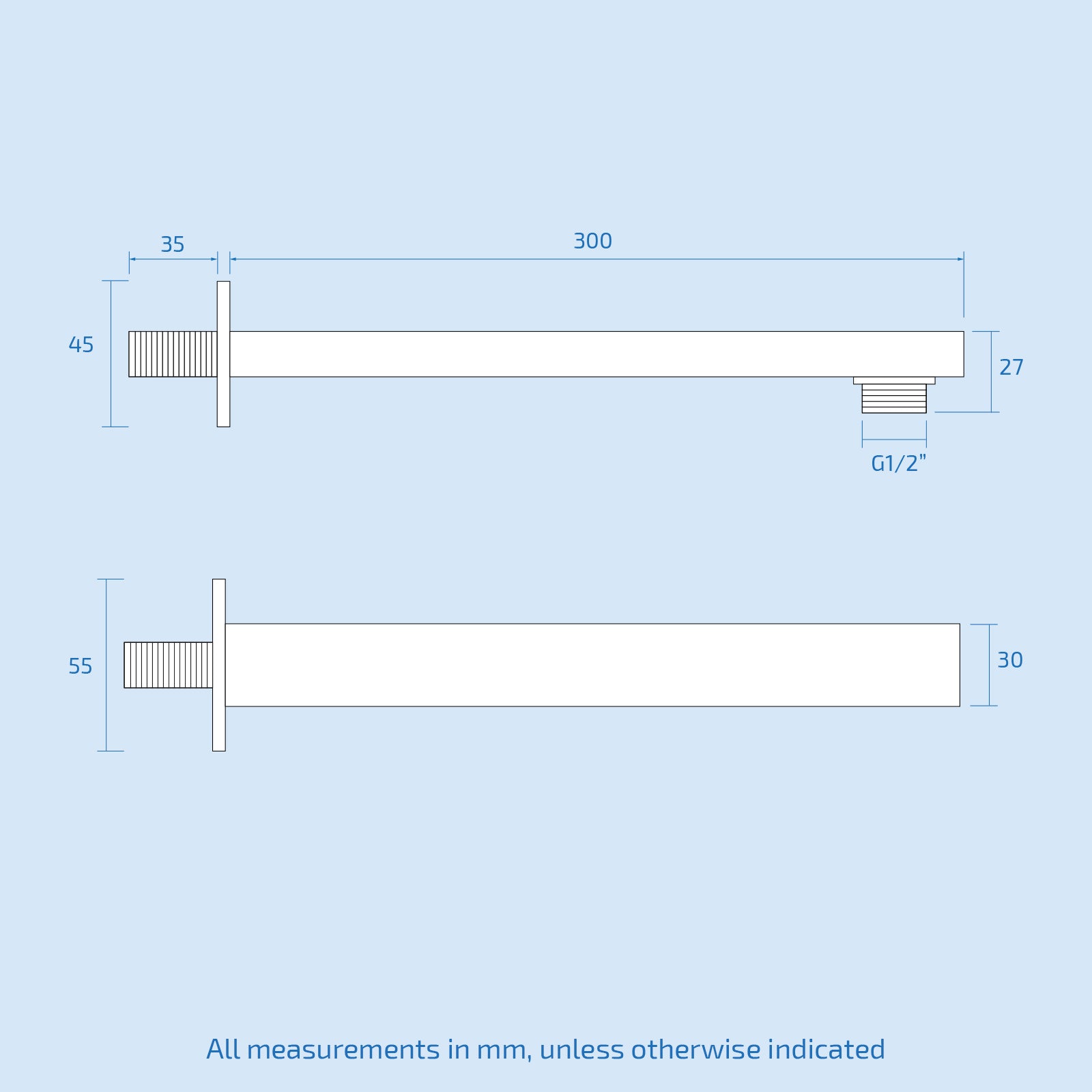

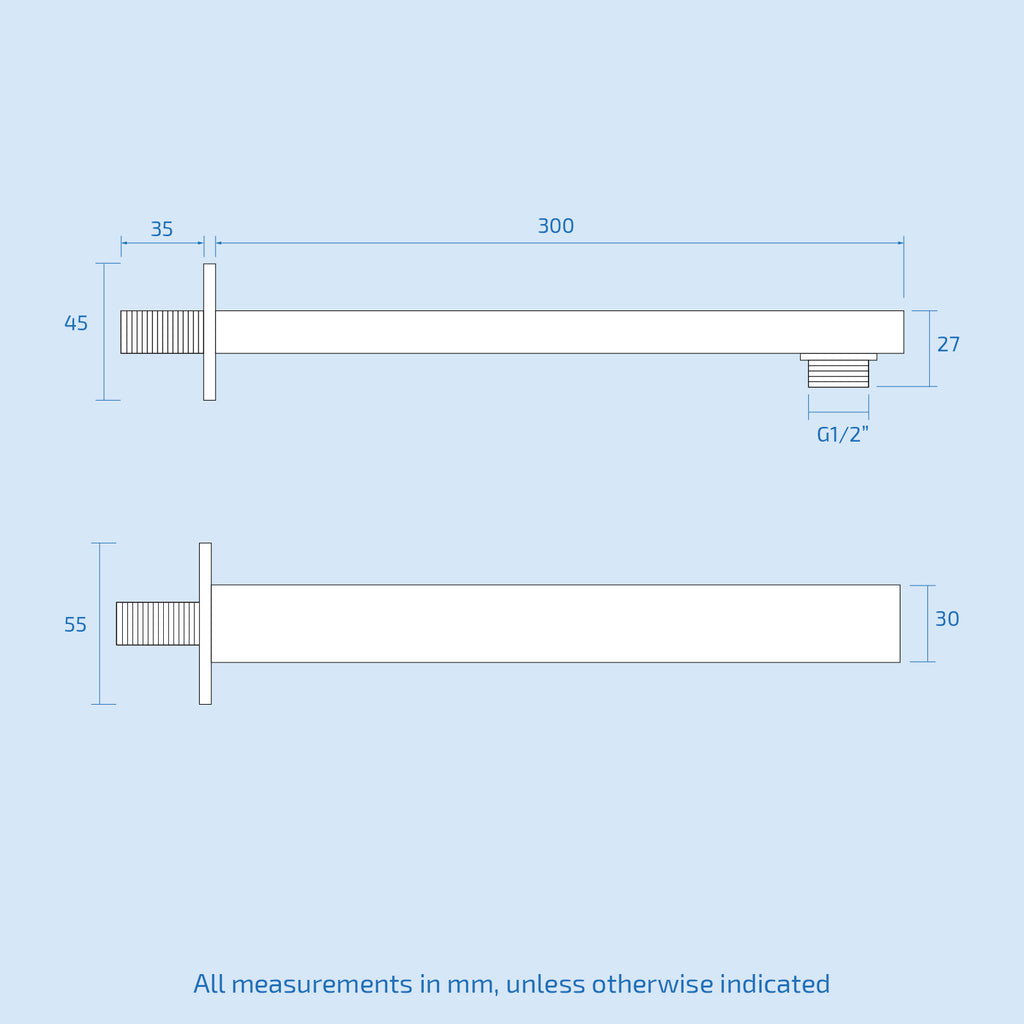

- Solid brass square wall mounting arm length
- Neoprene outlets offer easy clean functionality
- Subject to a minimum of 1.0 bar water pressure
Suitable For The Following Water Systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Standard pressurized hot water cylinder-type systems
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Shower handset
- 1 x Shower head and shower arm
- 1 x Wall connector and brackets
