Lily Round 3 Dial 3 Way Brass Concealed Thermostatic Shower Mixer Valve Chrome

Our Lily modern design Concealed Thermostatic Valves will compliment any modern bathroom suite, offering thermostatic showering via three easy-to-operate controls for temperature and flow. They also come with a 10 year warranty, for your peace of mind.

Features

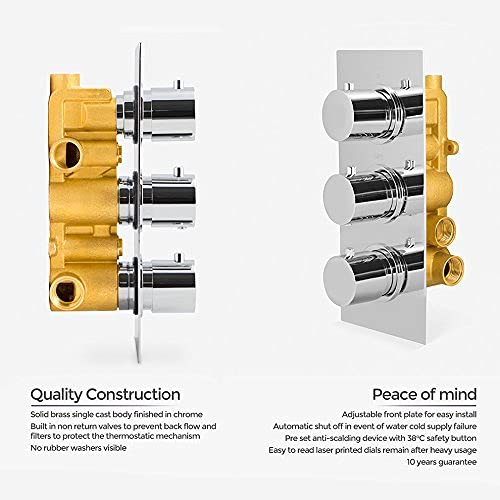

• Solid Brass Body
• Our valves have accessible non-return valves
• Our valves do not contain harmful materials
• Our cartridge is highly resistant to calcium build up and offers excellent flow rates even at low pressure
• Our mixers are cast from one single piece of brass eliminating weak spots
• UK standard size fitting

Valve Specifications

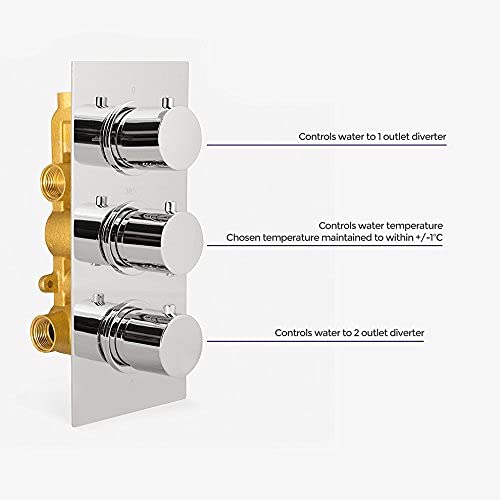

• Top dial - controls water to 1 outlet
• Middle dial - temperature control
• Bottom dial - controls water to 2 outlets
• High Quality Design
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 - 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Automatic shut off in event of water cold supply failure

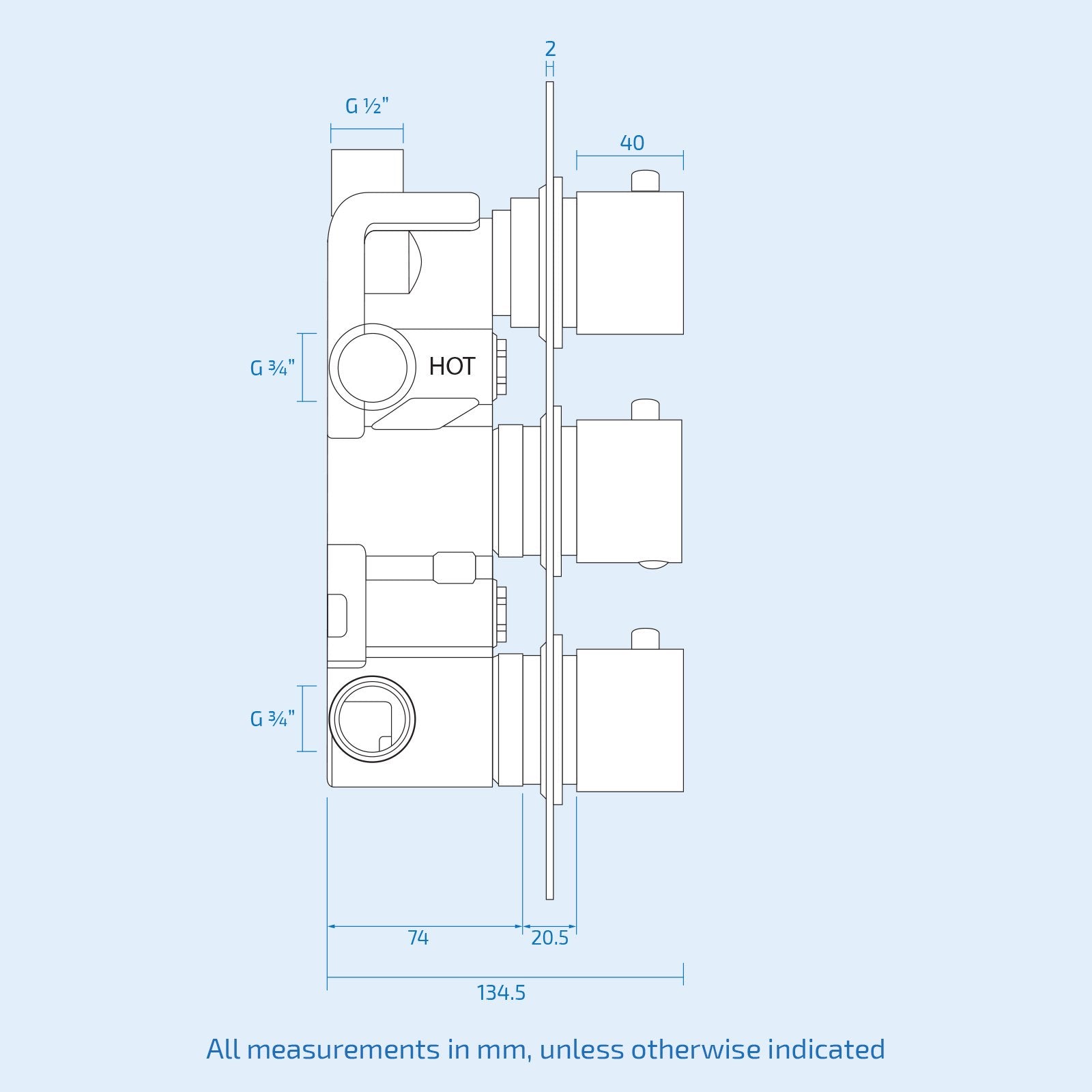

• Inlets: 3/4" BSP, outlet: 2 x 3/4" BSP, 1 x 1/2" BSP

Suitable For The Following Water Systems

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum pressure of 0.2bar to maximum 6bar (Recommended pressure is 1.0bar)

Flow Rates

• 0.2 Bar - 7.5 l/min
• 0.5 Bar - 10.7 l/min
• 1.0 Bar - 15.0 l/min
• 1.5 Bar - 18.5 l/min
• 2.0 Bar - 21.5 l/min
• 3.0 Bar - 27.0 l/min

Package Contents

• 1 X Thermostatic Valve
• 1 X Installation Guide
