Have a question about this product? Quote the Product ID when contacting our customer service.
Description

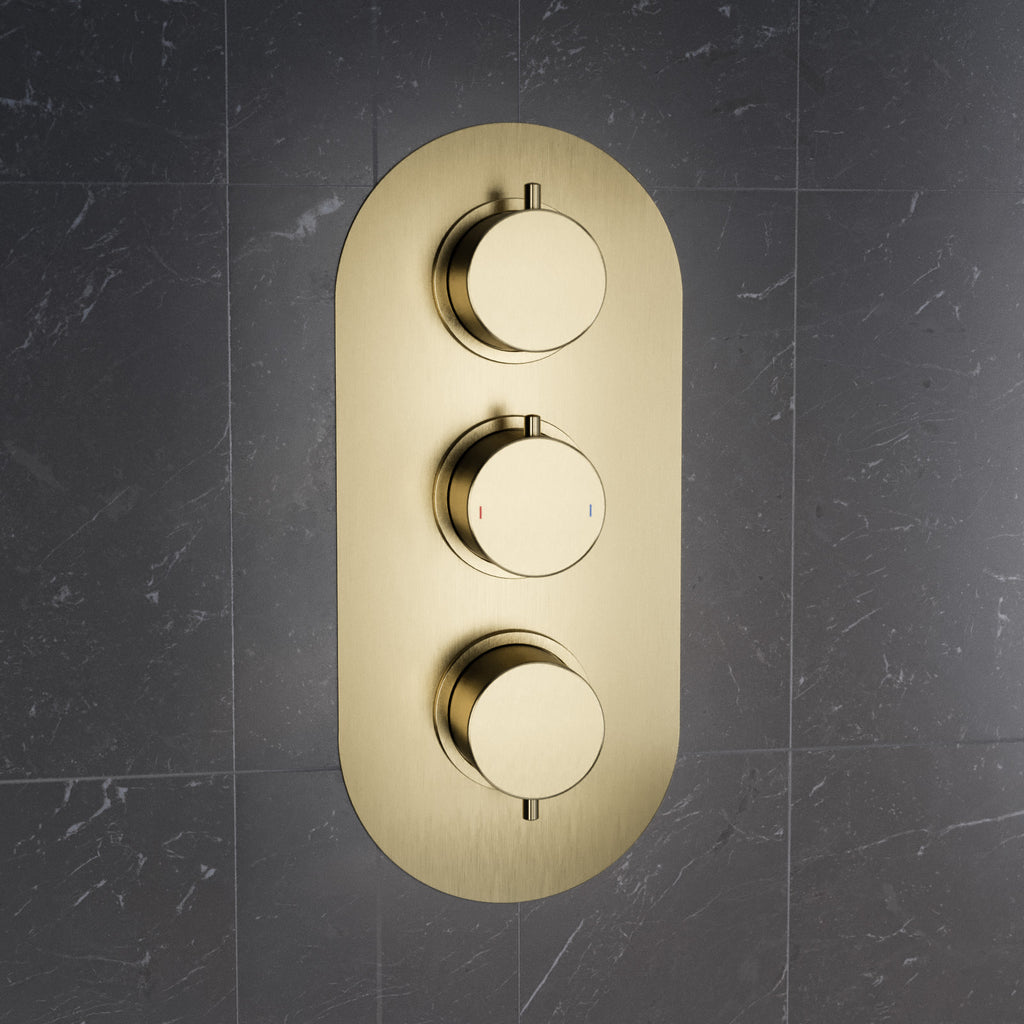

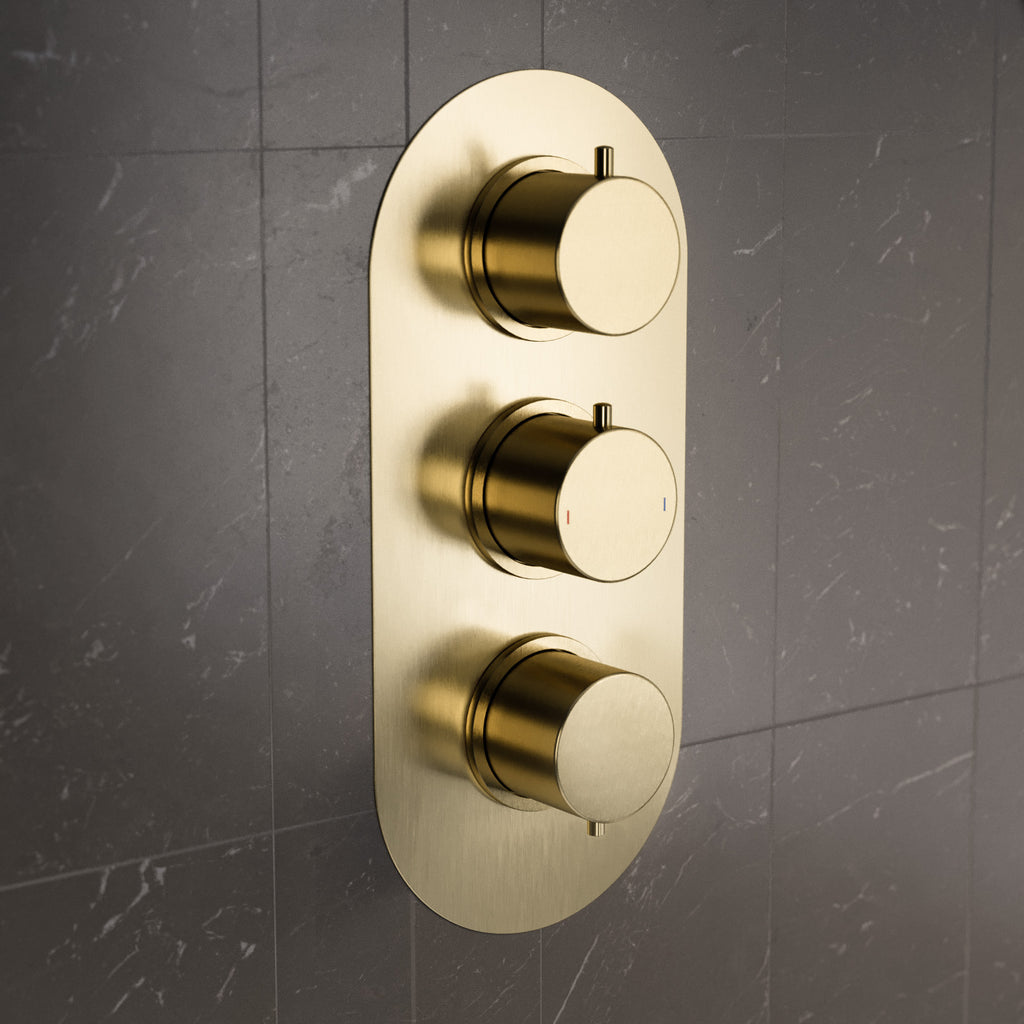

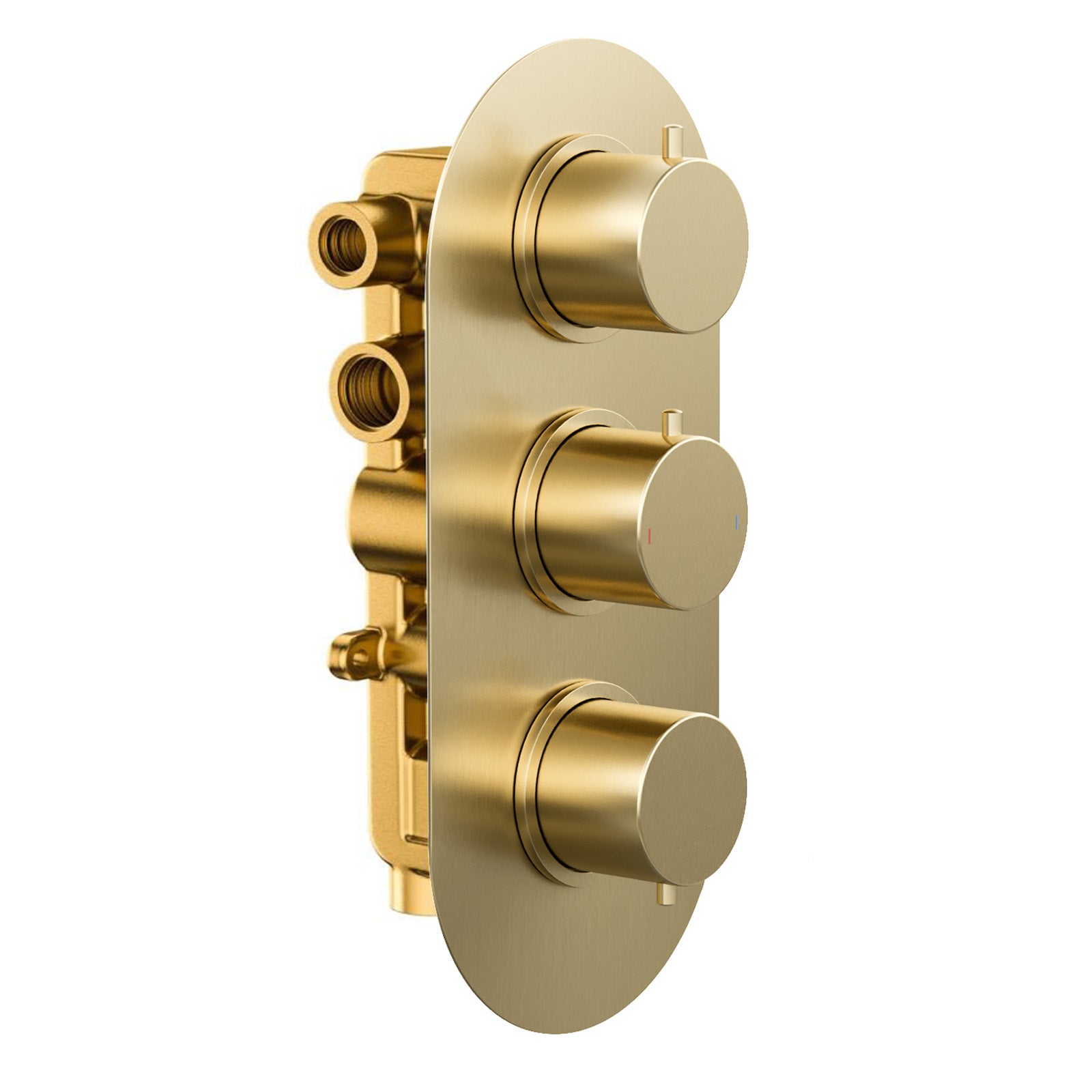

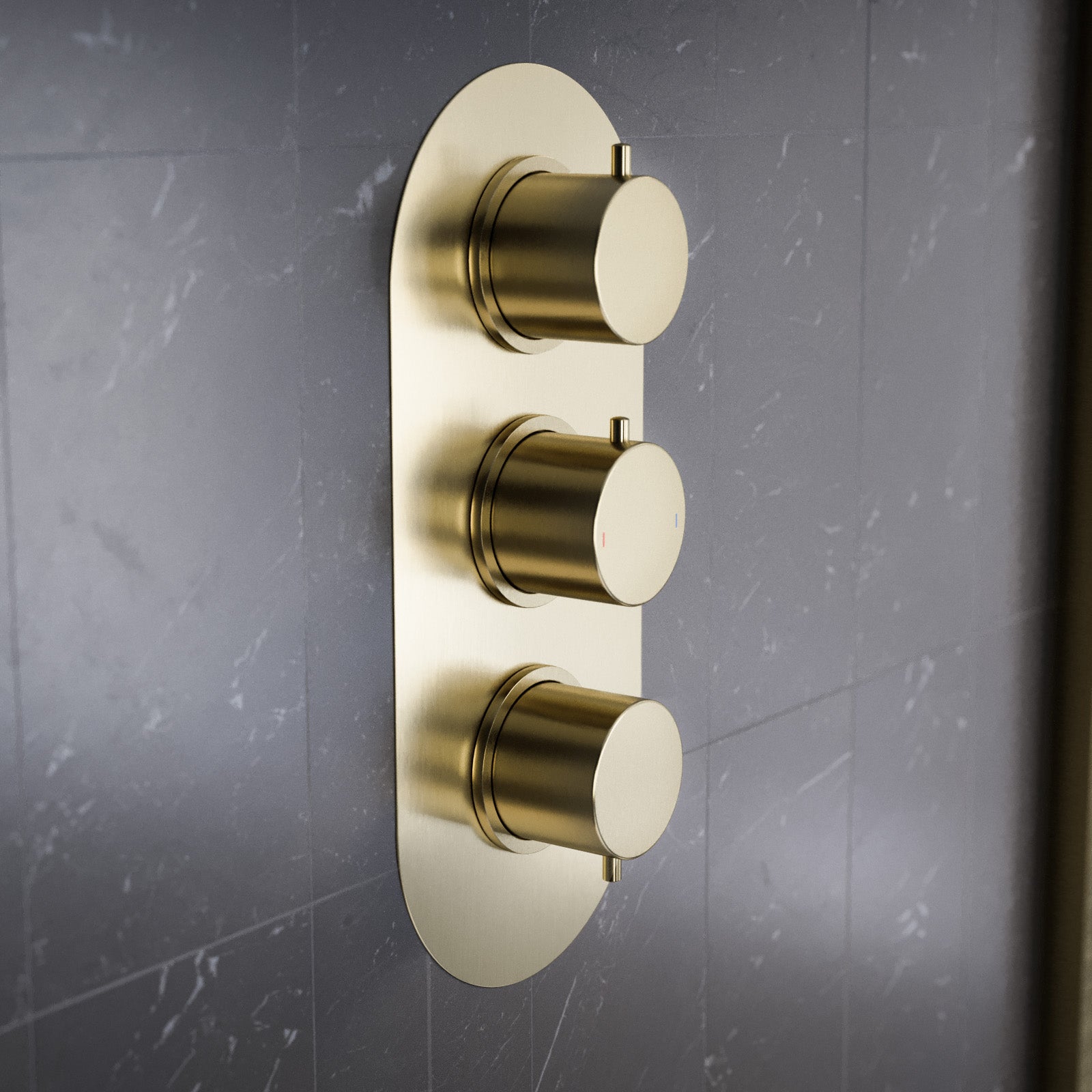

This Brushed Brass Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow.
Thermostatic Valve Features

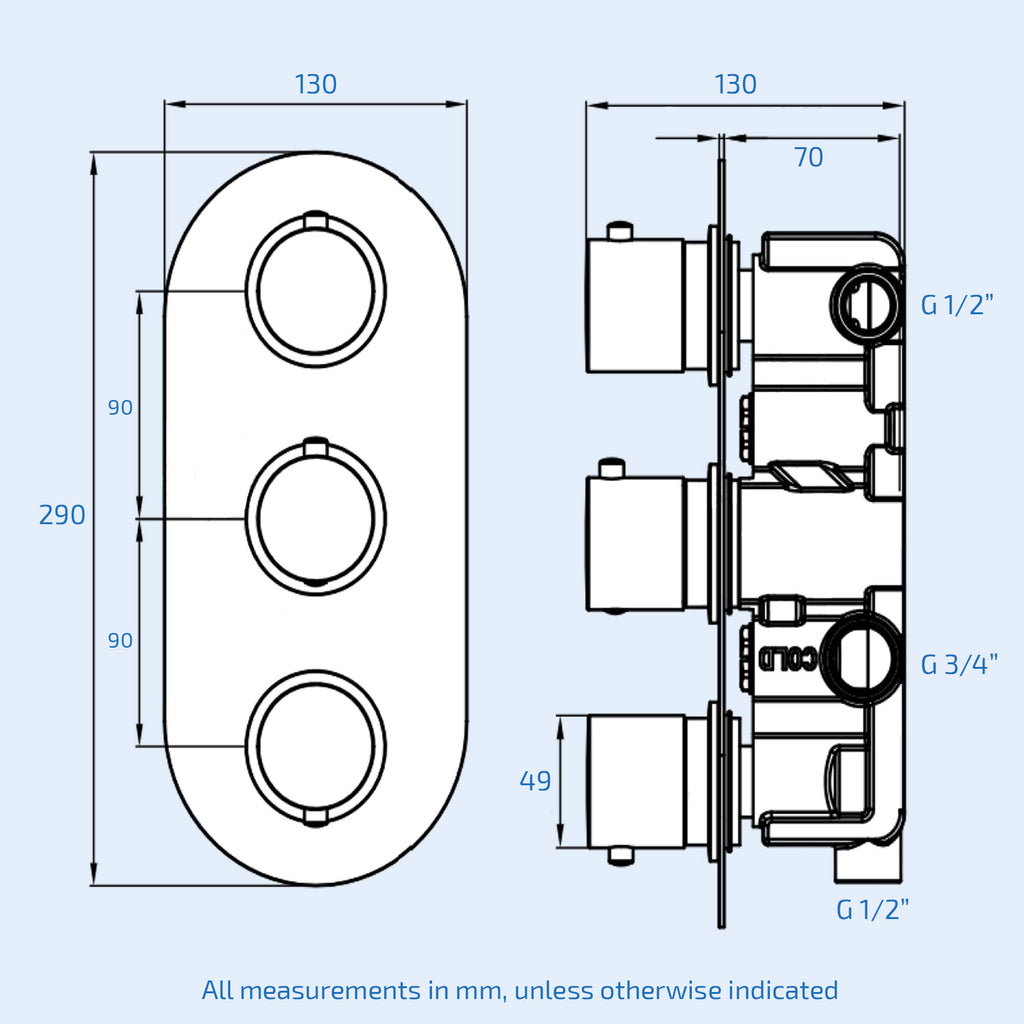

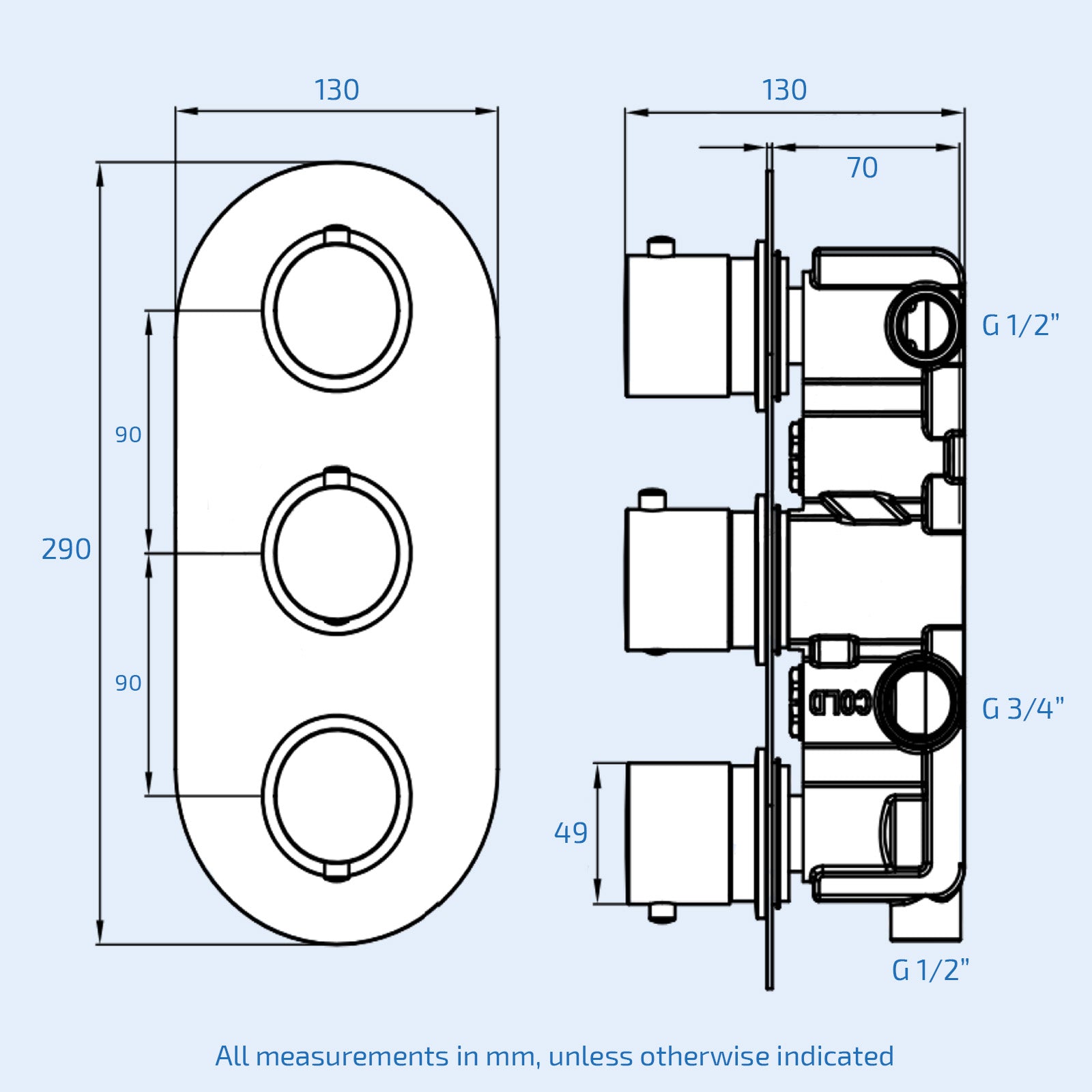

Height - 290mm
Width - 130mm
Depth - 130mm
Thermostatically controlled
Operating range 20 - 50 deg C with 38 deg C safety button
Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
Pre-set maximum temperature
Suitable For The Following Water Systems
Combi-boilers
Gravity Fed systems
MegaFlow Systems
Pumped systems
Un-vented systems
Pressurised cylinder systems
Subject to a minimum pressure of 0.2bar to maximum 6bar (Recommended pressure is 1.0bar)
