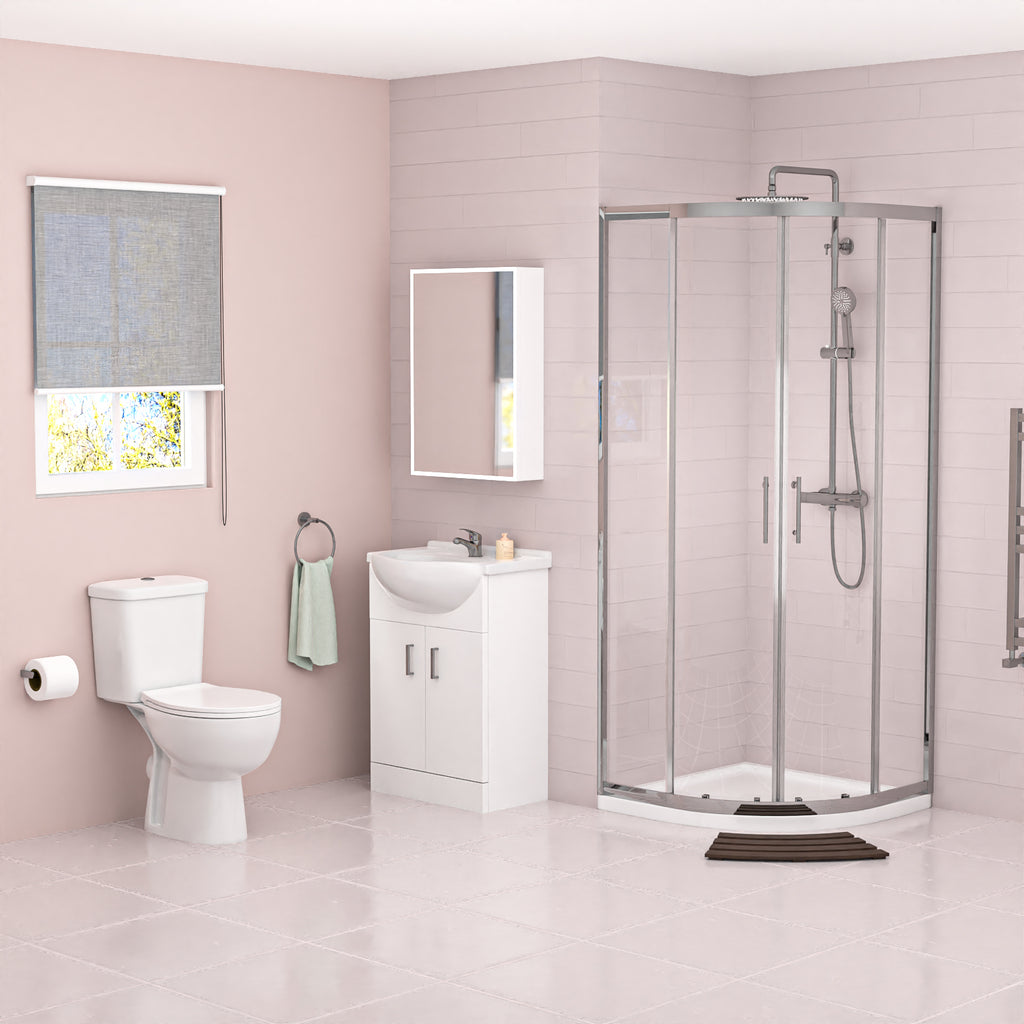

Ellen White Vanity Toilet & Chrome 900mm Quadrant Enclosure Tray with Exposed Shower

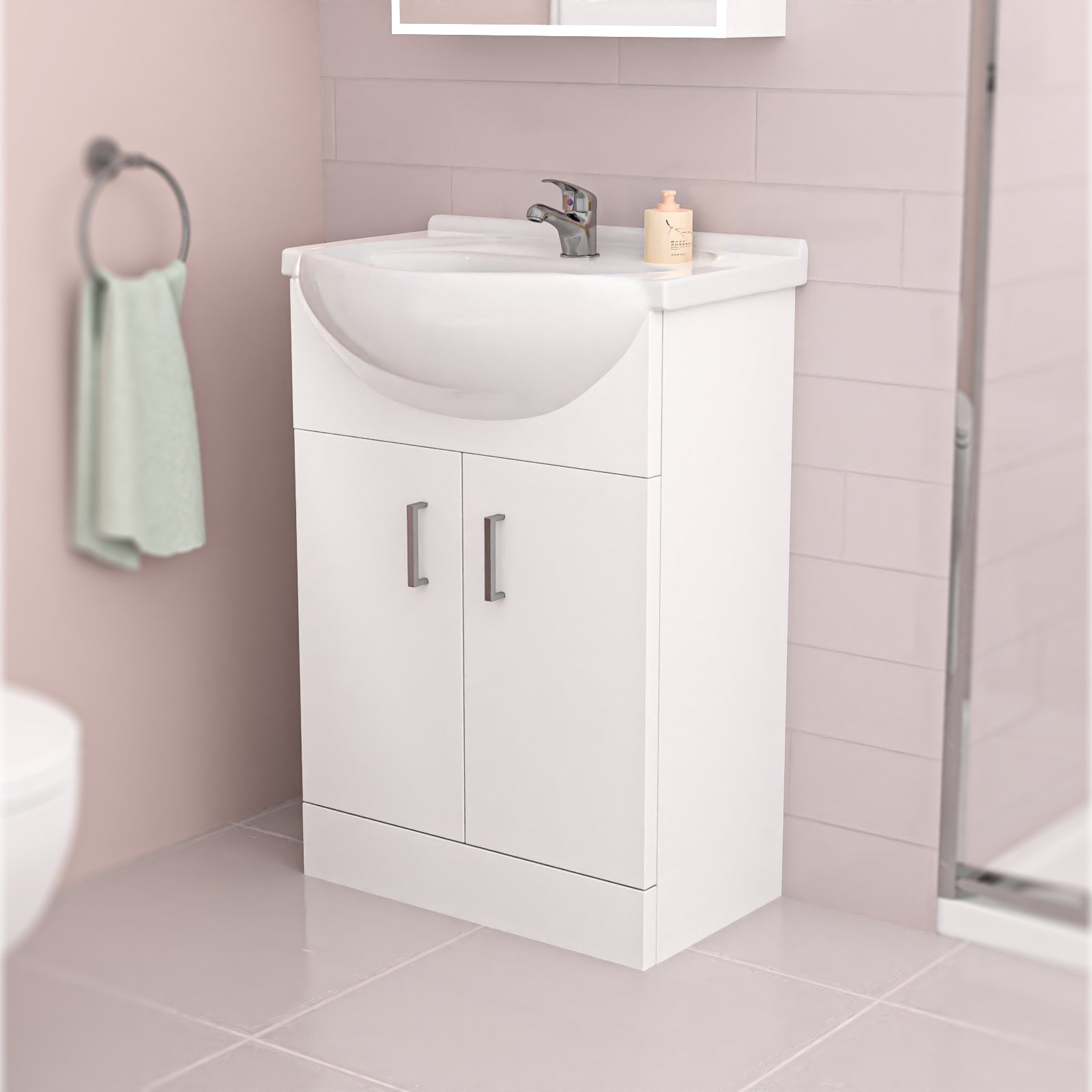

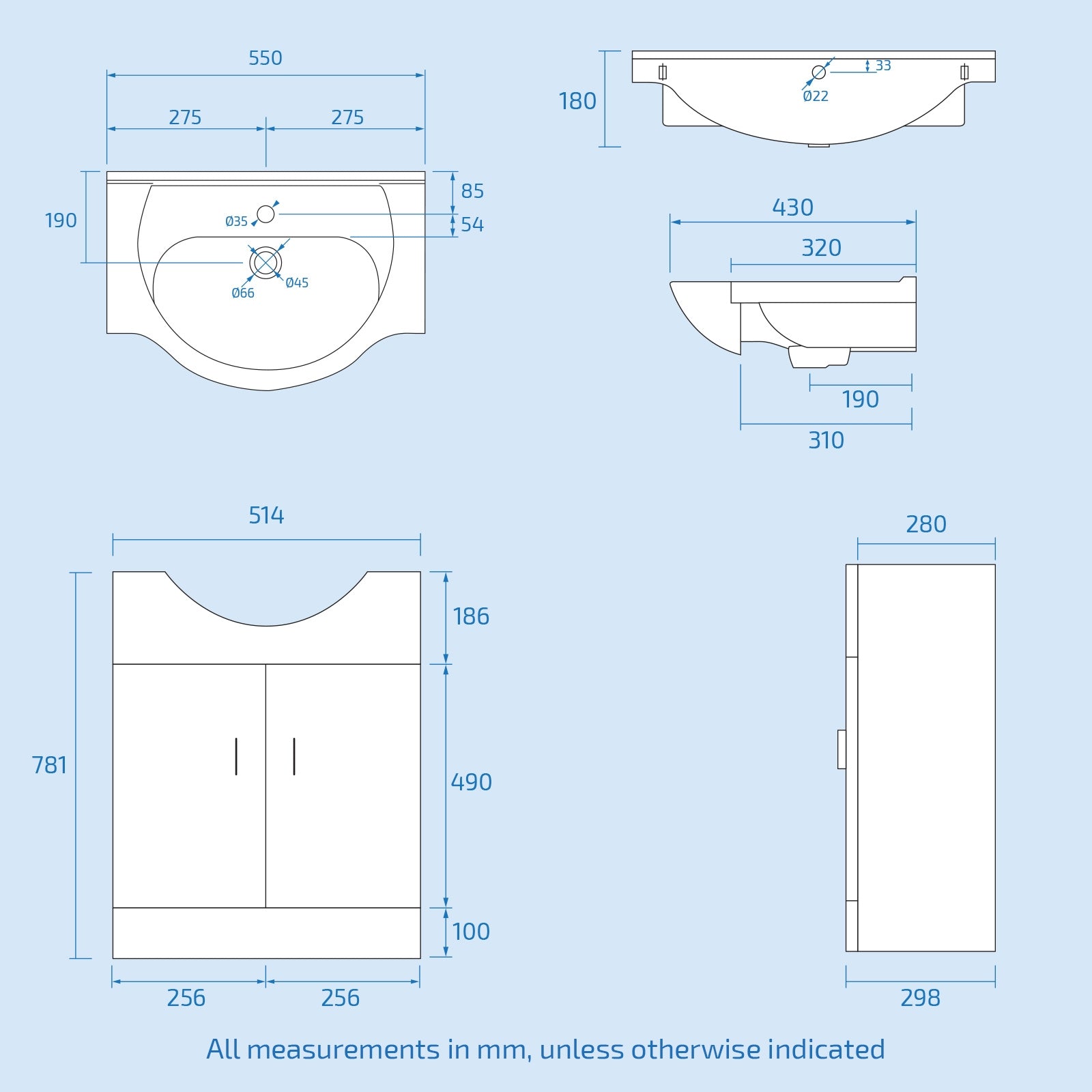

Vanity Cabinet

• Basin Vanity Cabinet
• Finishing: White Gloss Effect
• Cabinet Material: Water resistant MDF
• Basin Material: Ceramic
• One Tap Hole
• Handle Material: Polished Chrome Stainless Steel
• Vanity Height: 781mm
• Vanity Width: 514mm
• Basin Width: 550mm
• Basin Projection: 430mm

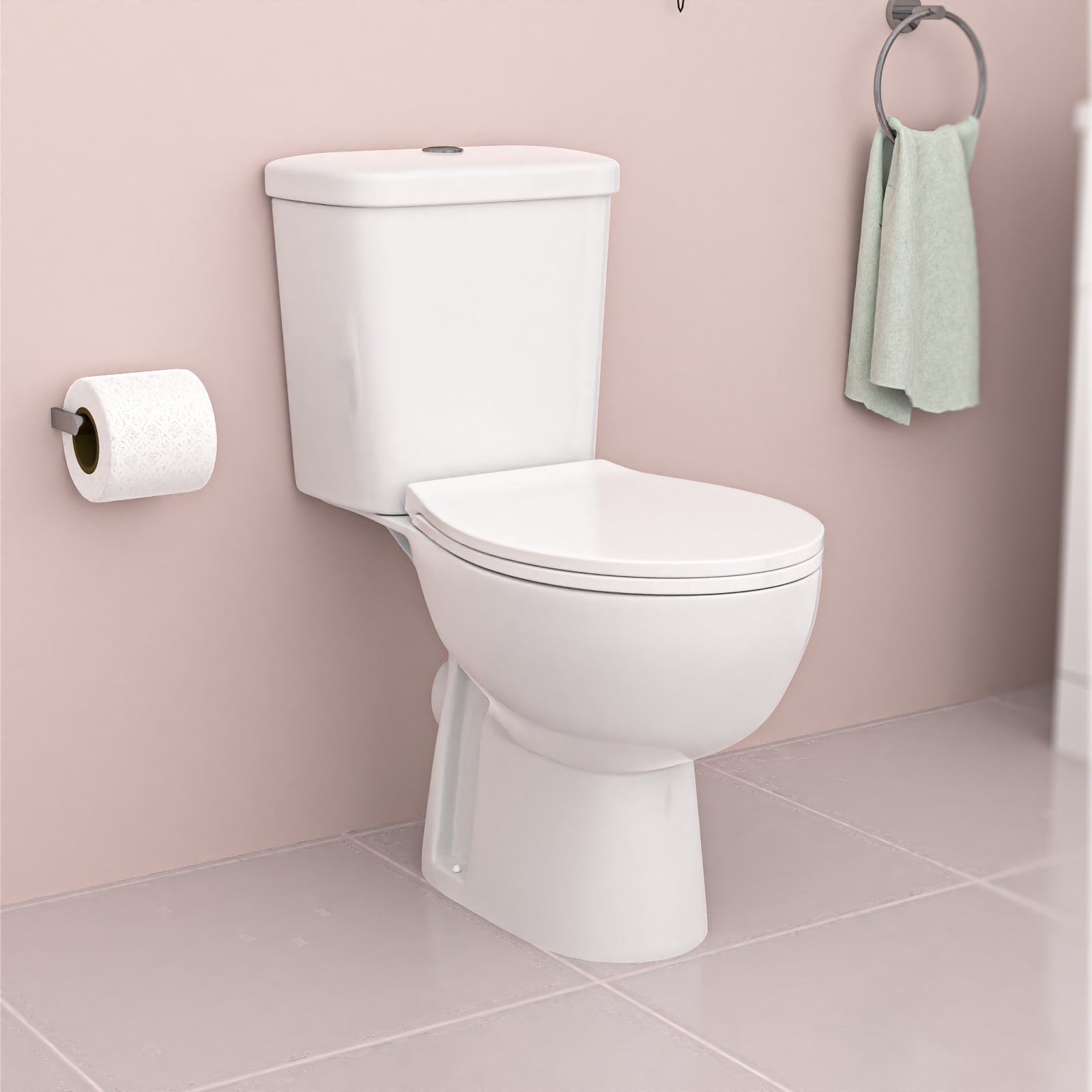

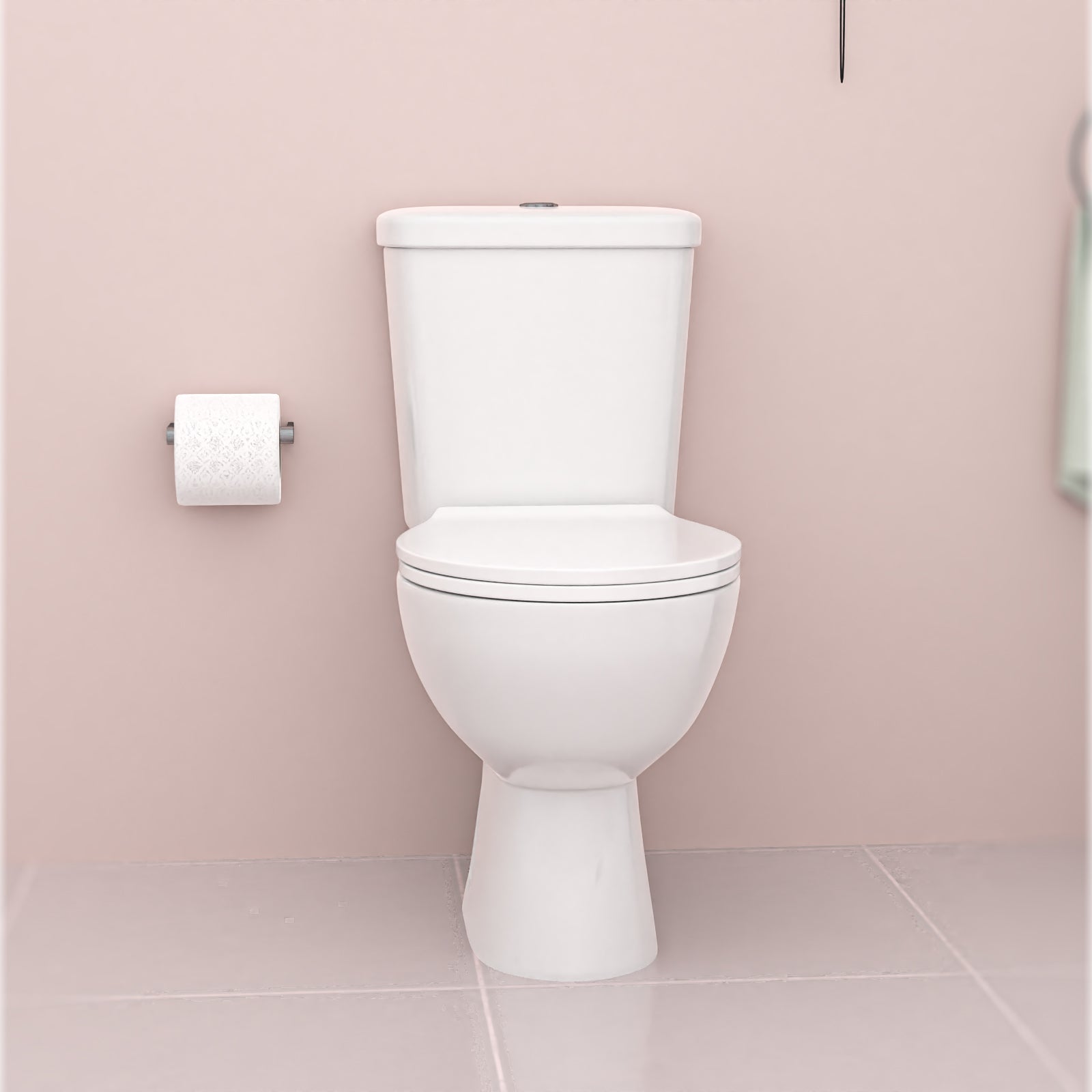

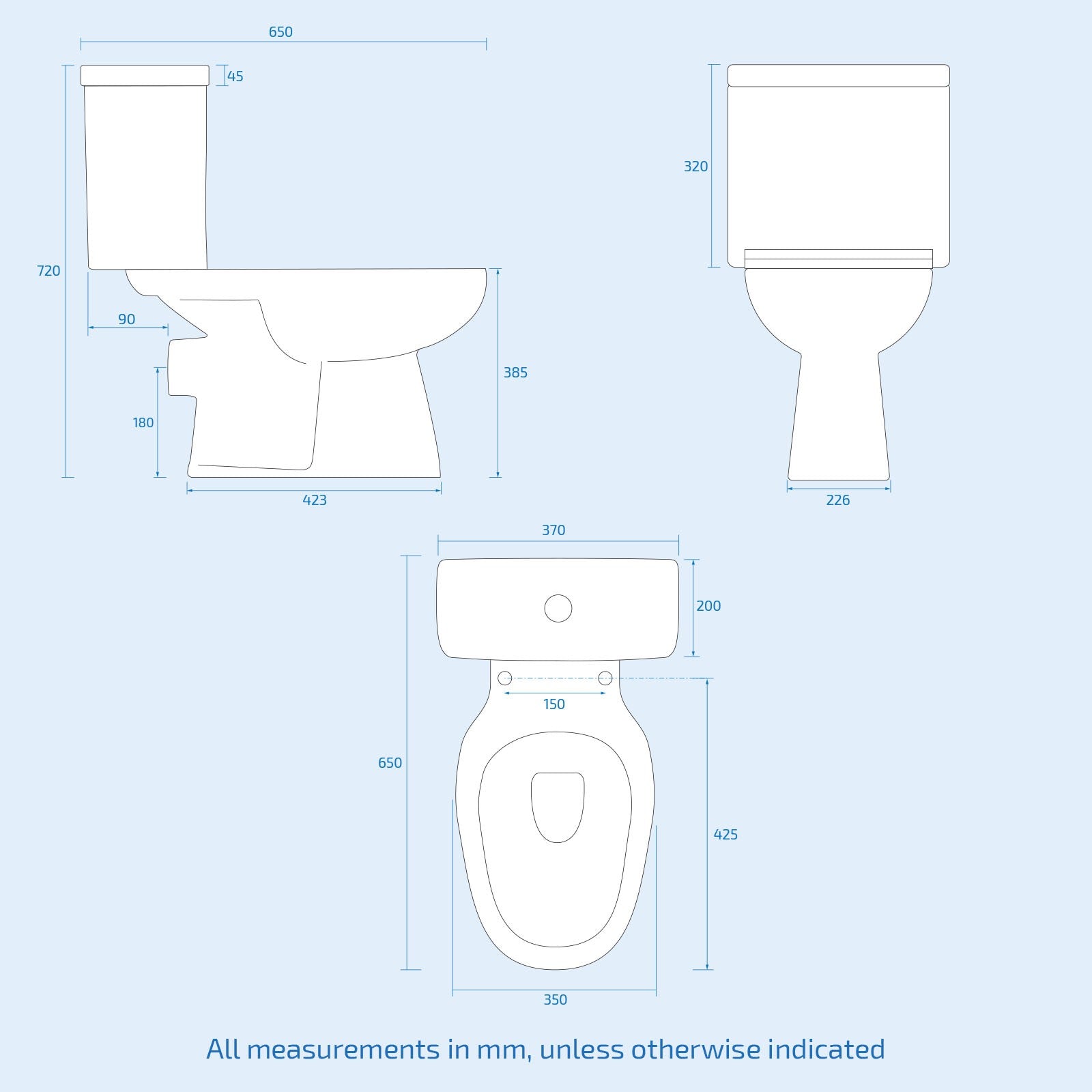

Toilet

• Height: 720 mm
• Depth: 650 mm
• Width: 370 mm
• Bowl height: 385 mm
• Material: Ceramic
• Cistern overflow: internal

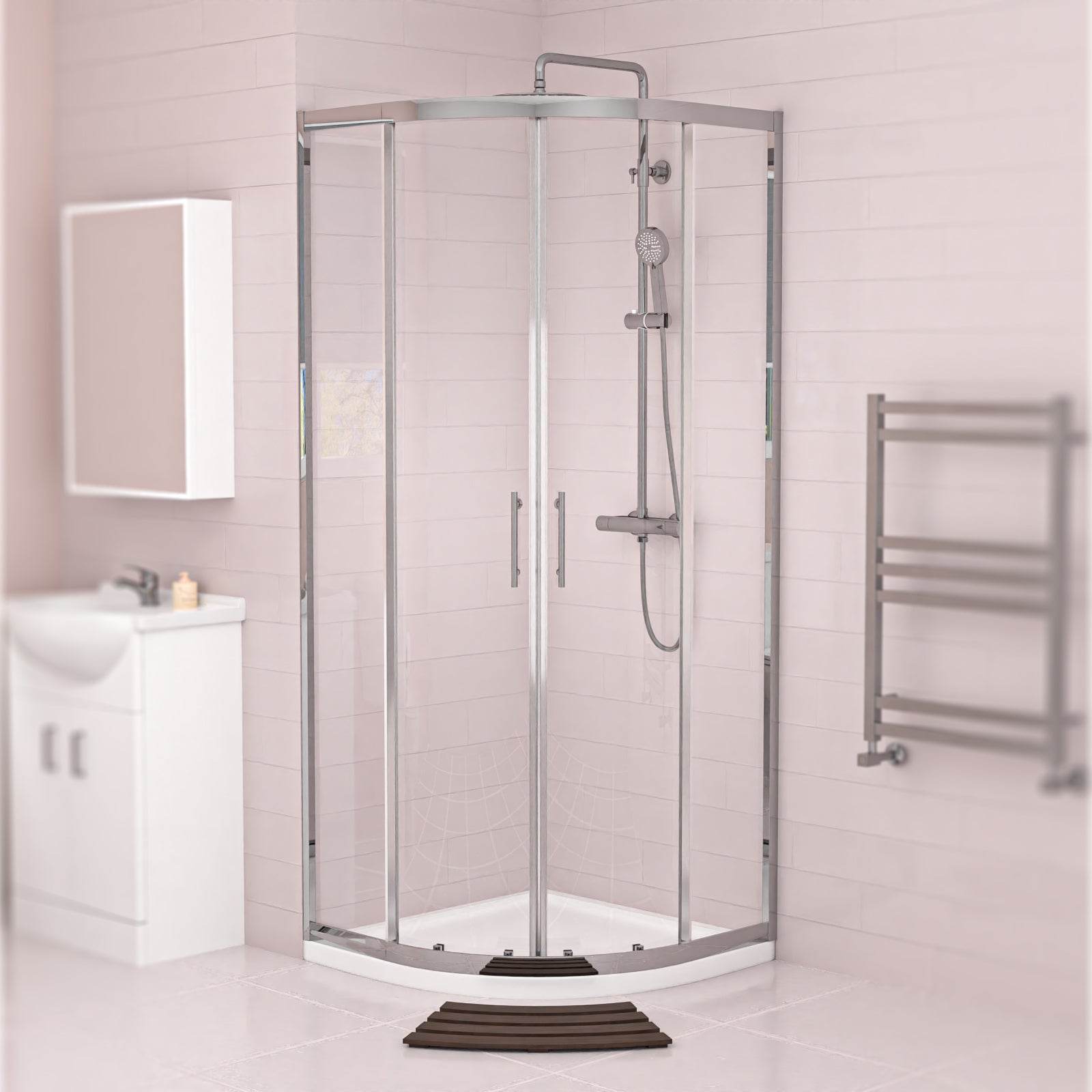

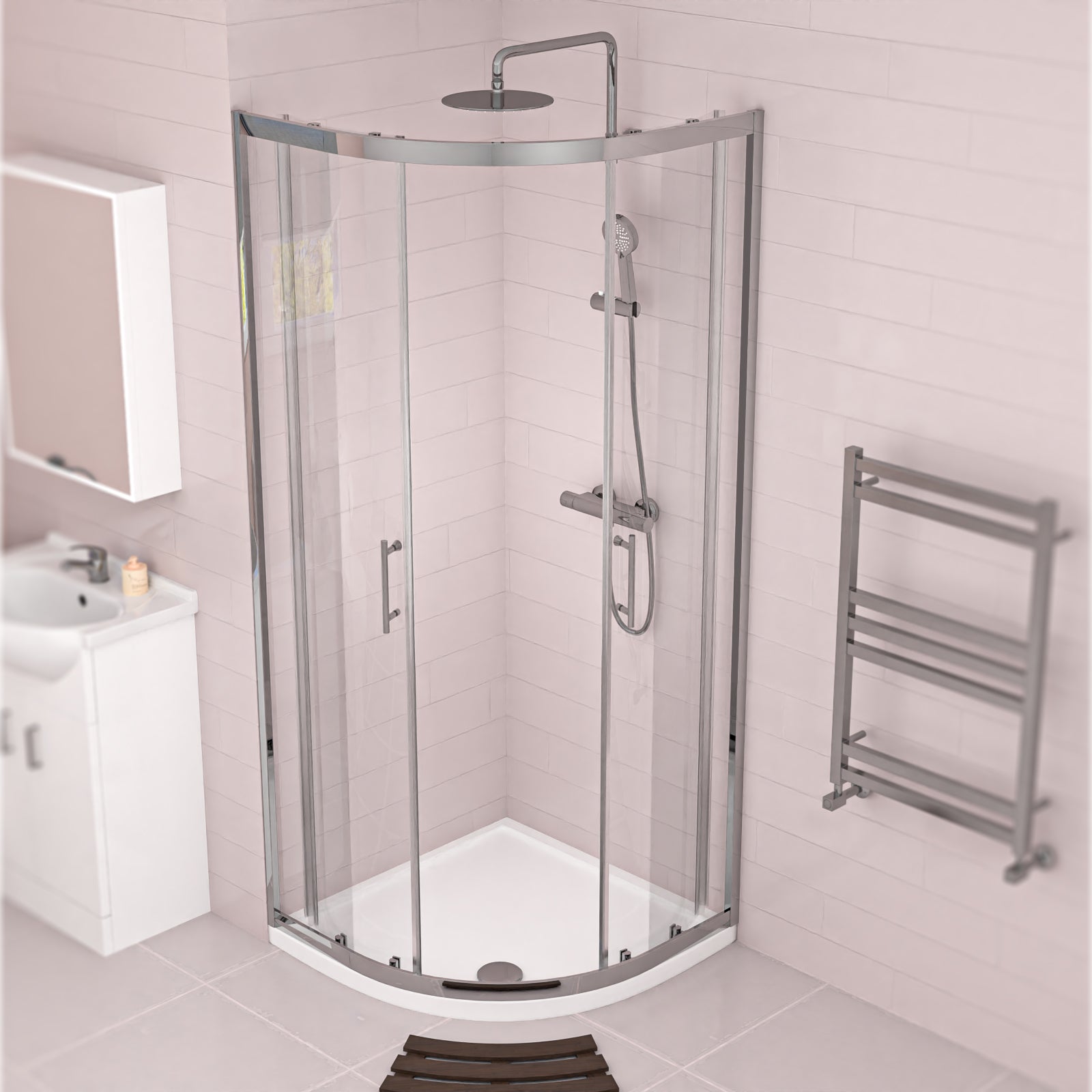

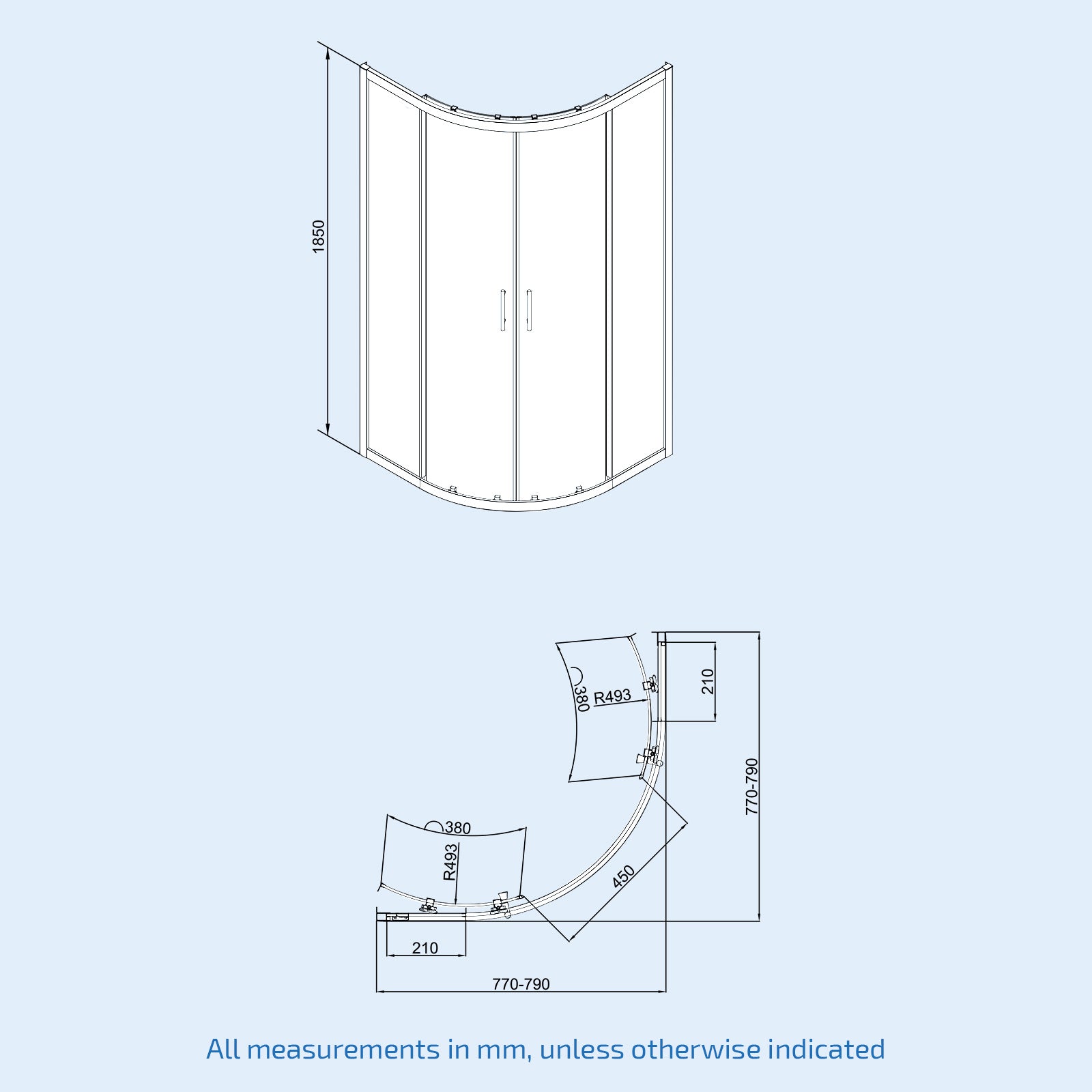

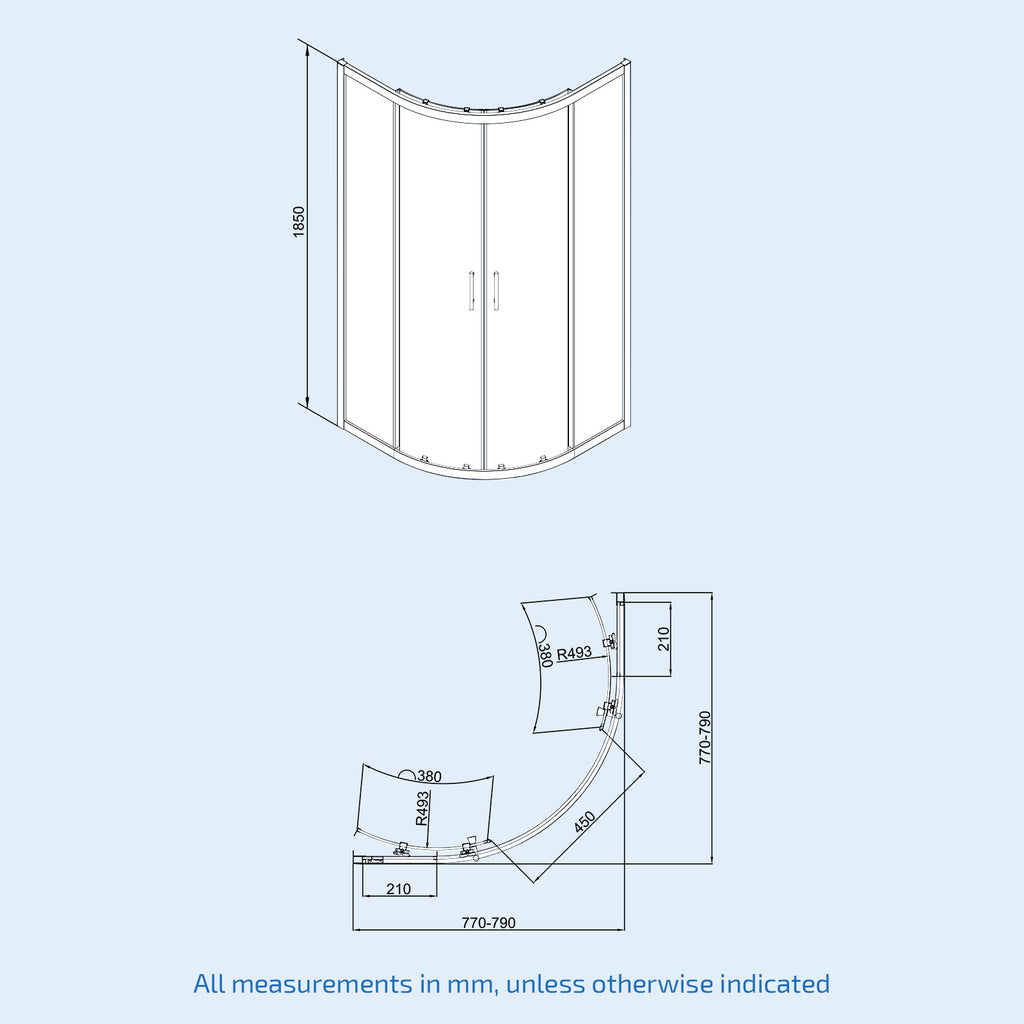

Shower Enclosure

• Height: 1850mm
• Width: 770-790 mm
• Concealed design quadrant sliding shower enclosure cubicle
• Panels are manufactured from 6mm toughened tempered safety glass
• Dazzling chrome finish profile
• Twin double quadrant sliding doors
• Strong build push release double rollers for smooth operation
• Quick release door system, easy removable wheels for easy cleaning
• High quality stylish stainless-steel handles, polished chrome finish
• Quality finish ensuring long term durability
• Chrome plated metal seal strip
• Supplied with screws made of rust resistant stainless steel
• Concealed fixings, easy click covers and top caps
• Passed multi waterproof tests: the best waterproof guarantee
• Power shower proof
• Universal; left or right hand fitting
• 20mm out of line inward wall adjustment for out of plumb/true walls

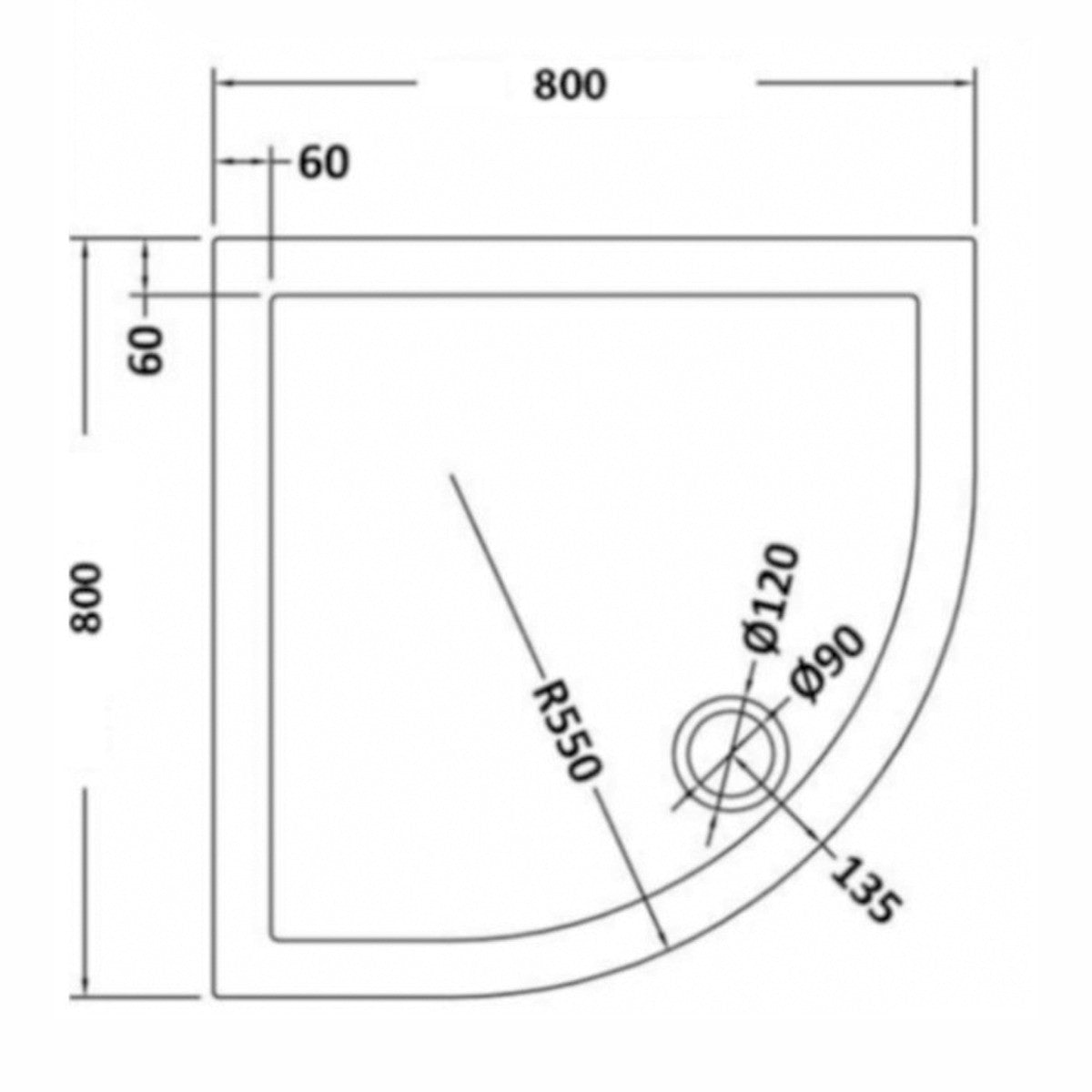

Shower Tray

• Style: Modern
• Tray Type: Flat Top
• Length: 800 mm
• Width: 800 mm
• Height: 40mm
• Shape: Quadrant
• Waste Outlet: 90mm
• Finish: White
• Material: Acrylic Capped/Pearlstone

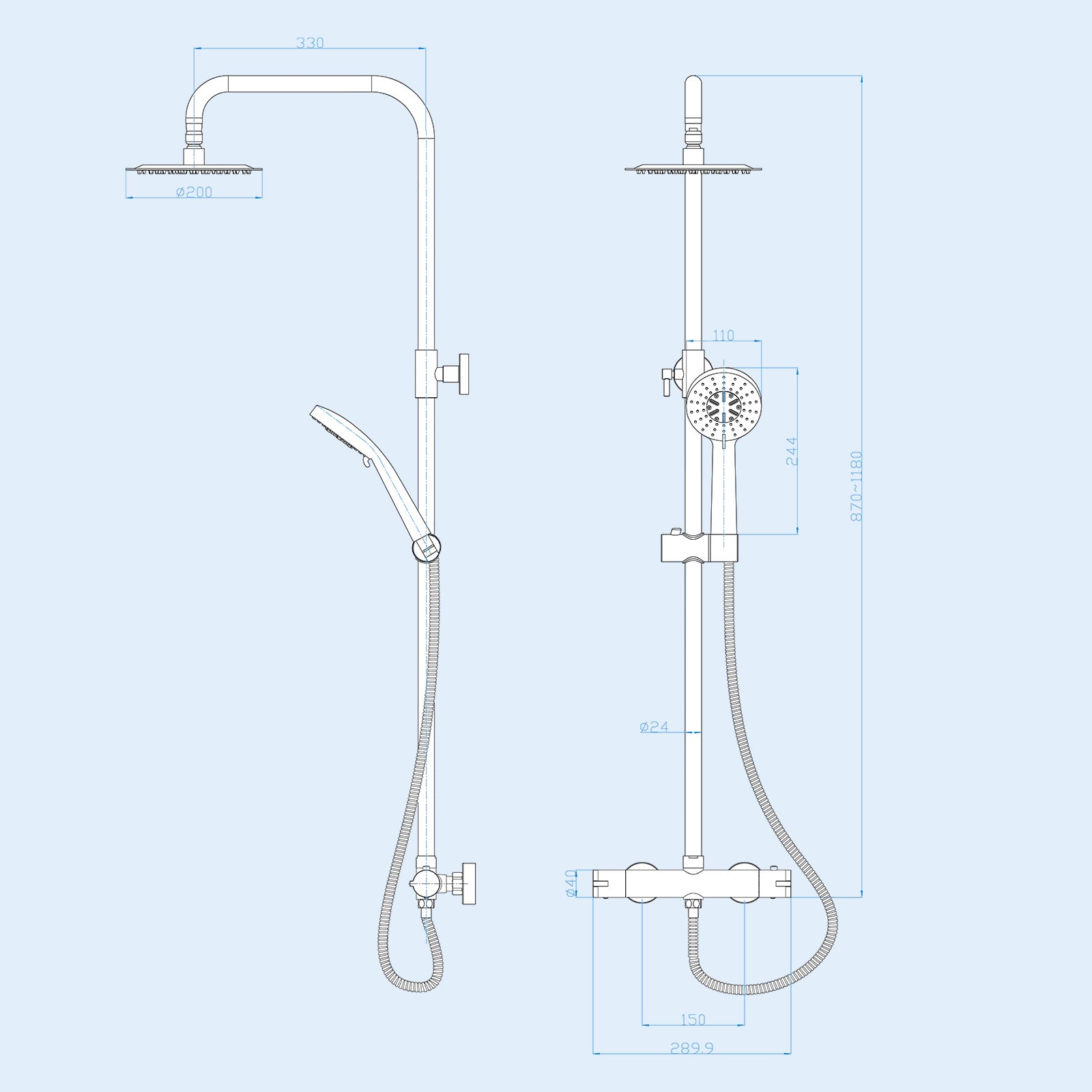

Round Exposed Thermostatic Shower Kit

• Rigid riser height: 870-1180mm
• Length of shower head arm: 330mm
• Overhead shower head size: 200 x 200mm
• Shape: Round
• Style: Modern
• Valve: Brass construction
• Anti-scalding: Built in device
• Child friendly: Anti-scalding device
• Temperature range: 20-50 degrees C
• Dual control: Thermostatic and water-flow
• Finish: Highly polished 3-layer PVD
• Showerhead size: 8 inch (200mm)
• Shower head: Chrome plated
• Joint: Adjustable swivel
• Slider rail: Solid brass
• Adjustable: Yes
• Handset: ABS handset with chrome plating
• Hose: 1.5m flexible stainless steel
• Nozzles: Easy clean rubber nozzles
• Controls: 2
• Diverter: Yes
• Long lasting: Tarnish and corrosion resistant
• Fittings: Yes
• Sizing: UK standard size
• Package Weight: 8.0KG

Suitable Water Systems

• Subject to a minimum pressure of 1bar to maximum 5bar
• Combination boiler systems
• Gravity-fed systems (only with a pump)
• MegaFlo systems
• Pumped hot water systems
• Un-vented hot water systems
• Standard pressurised hot water cylinder type systems

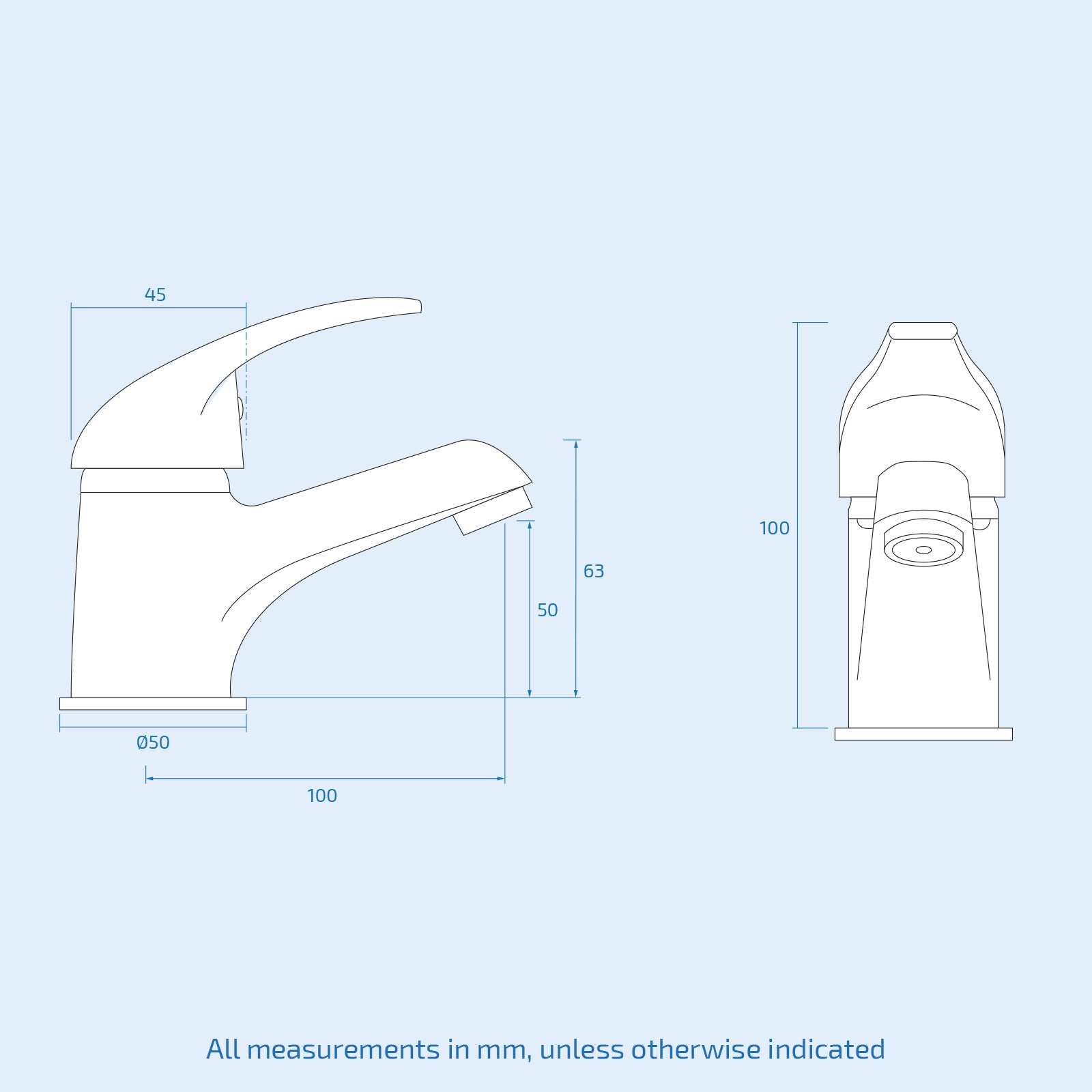

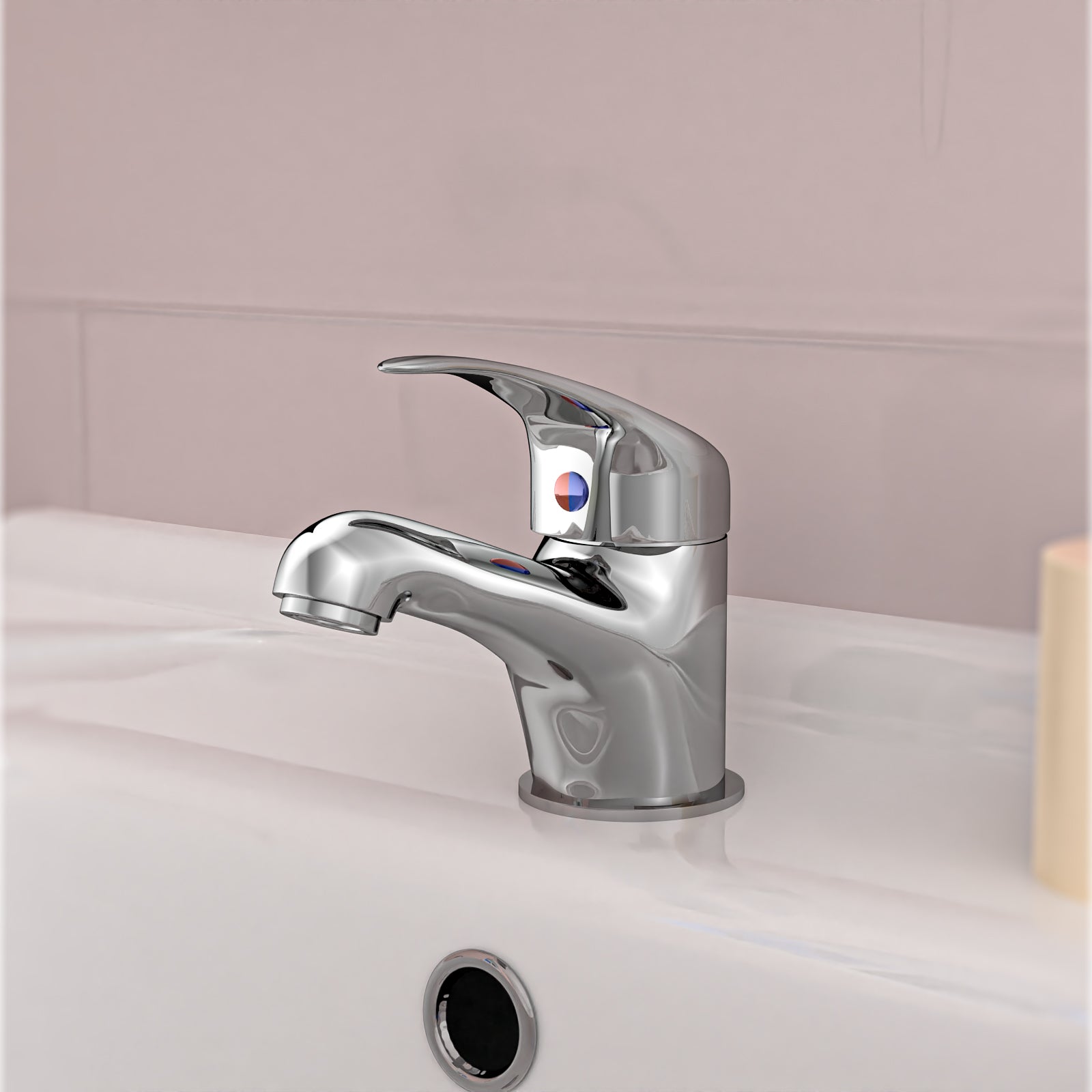

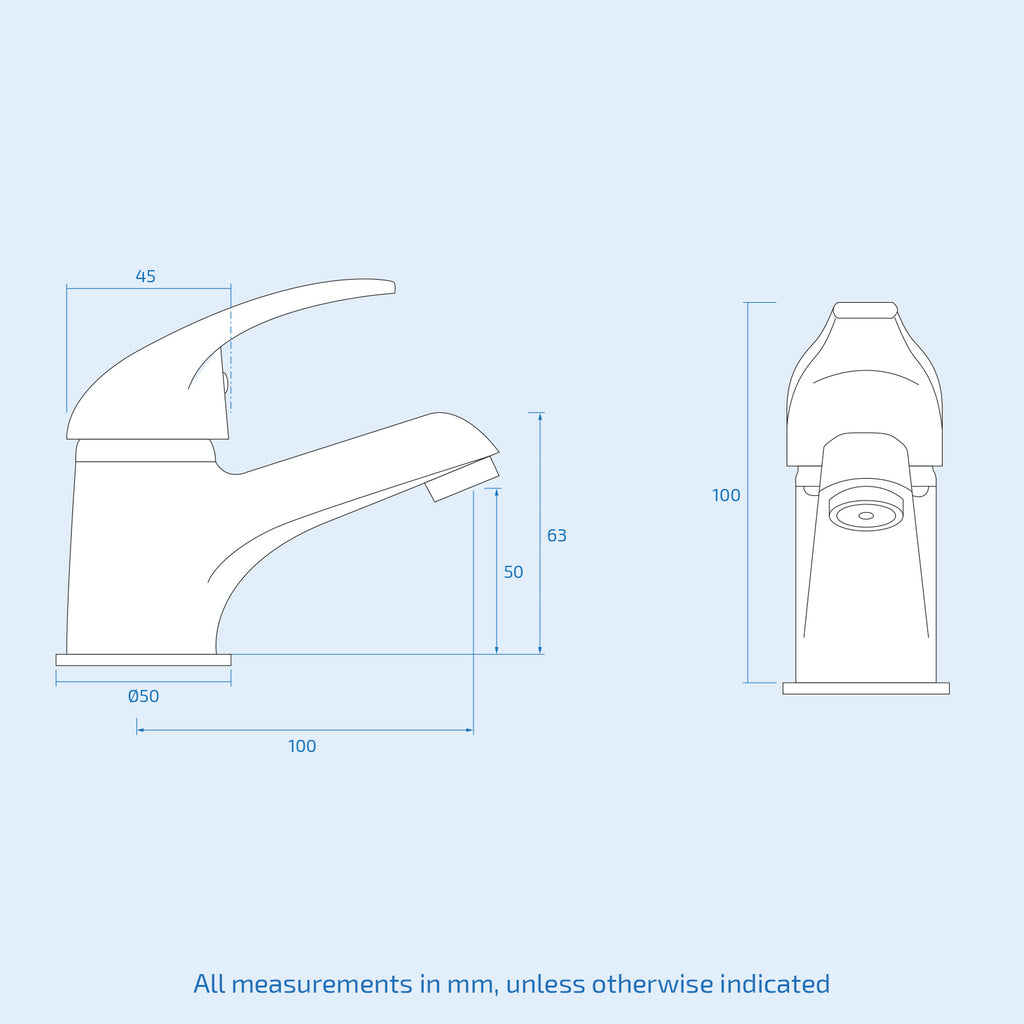

Mixer Tap

• Material: Brass
• Style: Modern
• Finish: Chrome
• Fitting included: Yes
• Flexible hose: Yes
• Mounting Type: Deck Mounted
• Minimum pressure: 0.5 bar
• Recommended pressure: 1 bar
• Guarantee: 10 years

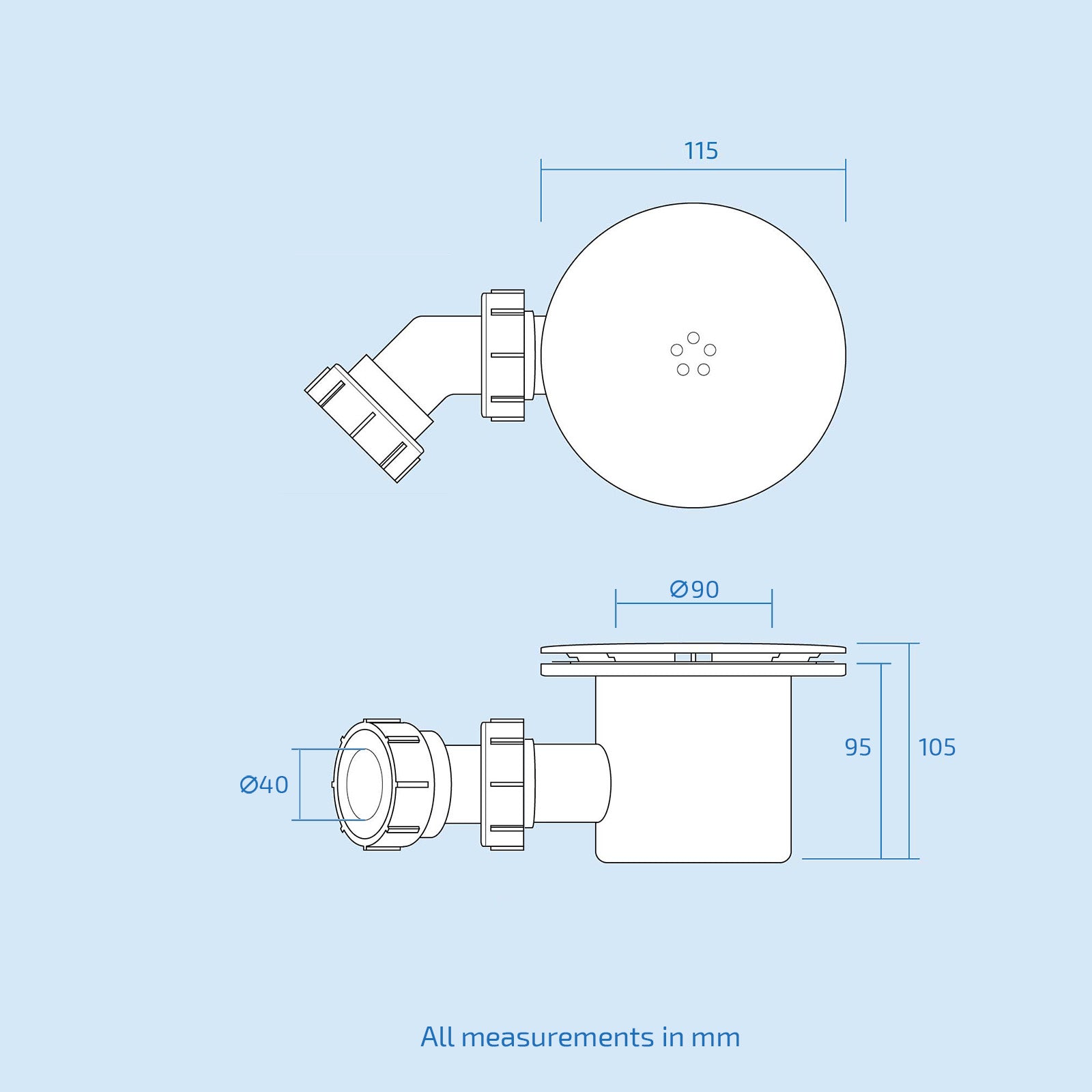

Waste

• Width: 115mm
• Height: 105mm
• Shape: Round
• Finish: Chrome
• Fast flow system
• Quick release inner unit
• Material: Plastic

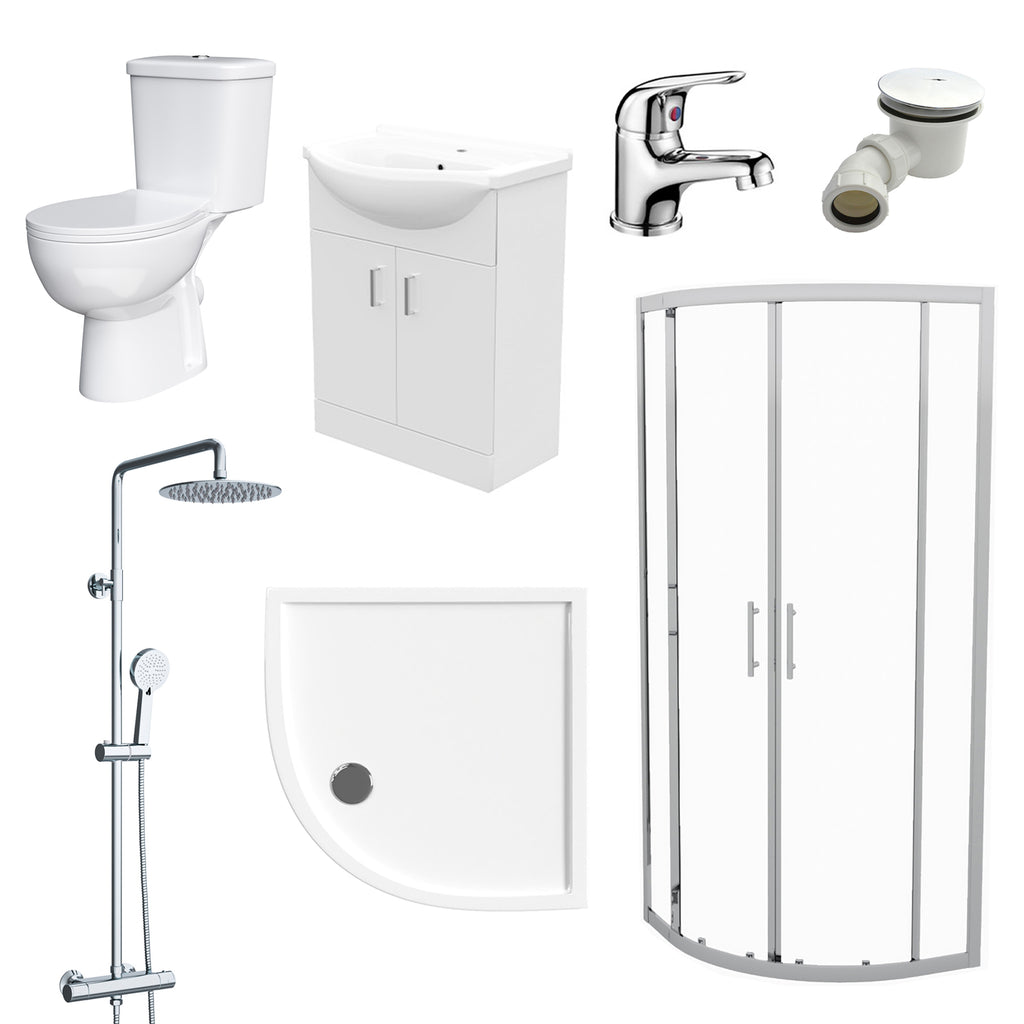

Package Contents

• Close Coupled Toilet
• Toilet Seat
• Shower Tray
• Shower Enclosure
• Shower Waste
• Basin
• Vanity Unit
• Thermostatic mixer bar valve
• Riser rail
• Shower head
• Handset shower
• 1.5m shower hose
• Shower Kit Fittings
• Basin Mixer Tap
• Mixer Tap Fittings
