Description

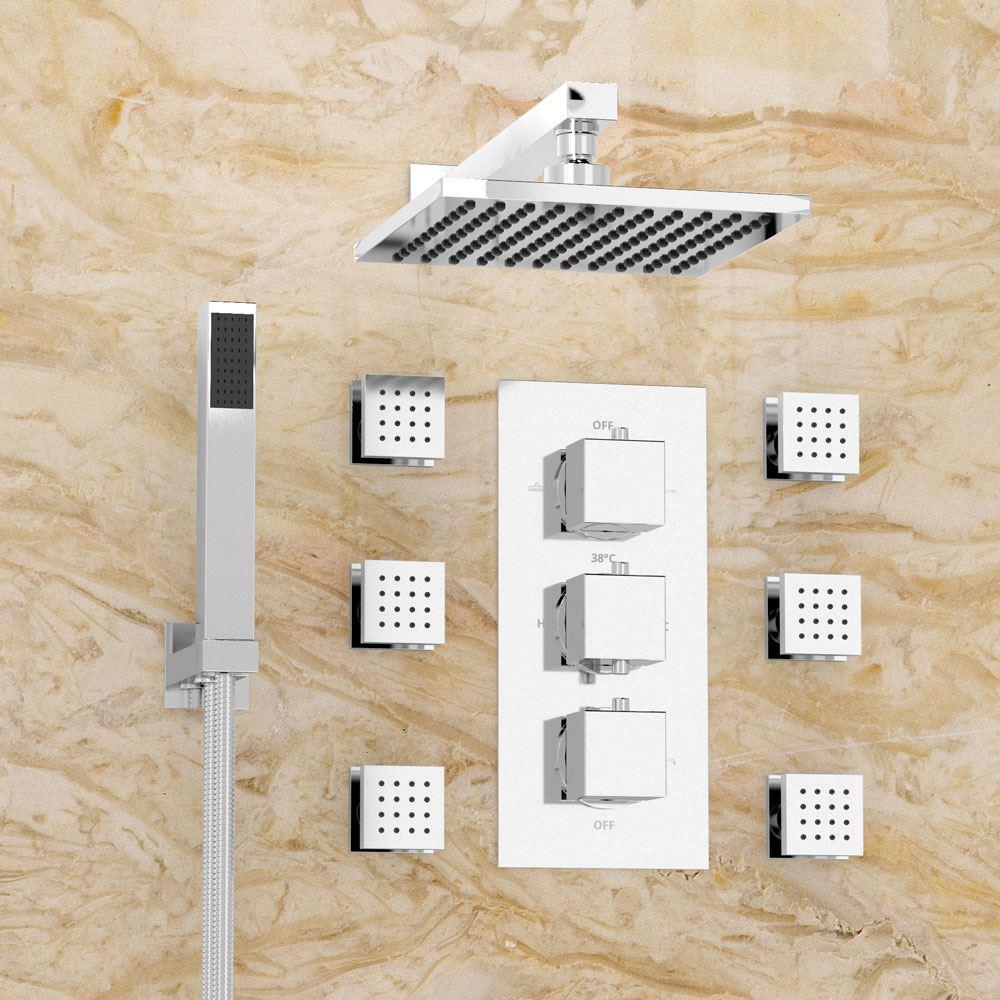

The concealed thermostatic shower valve has a unique stylish design giving your bathroom a more modern look, the thermostatic shower valve is convenient and safe to use. The top dial controls the water flow, the middle dial controls the temperature and the bottom dial control the water to 2 outlet diverters, the thermostatic shower mixer valve is fitted with a safety button, pre-set to 38 degrees, which prevents any accidental scalding temperatures, it is also a non-return valve which means that the water will only flow in one direction.

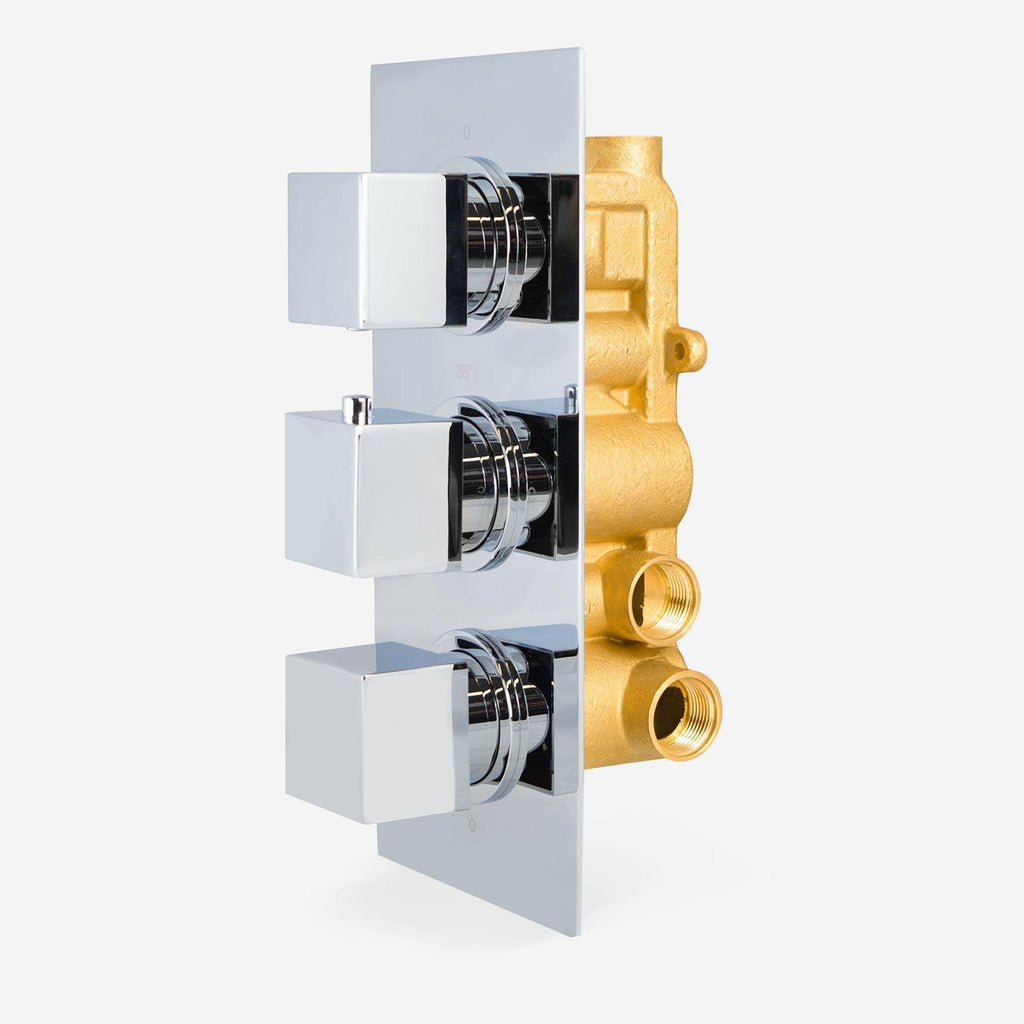

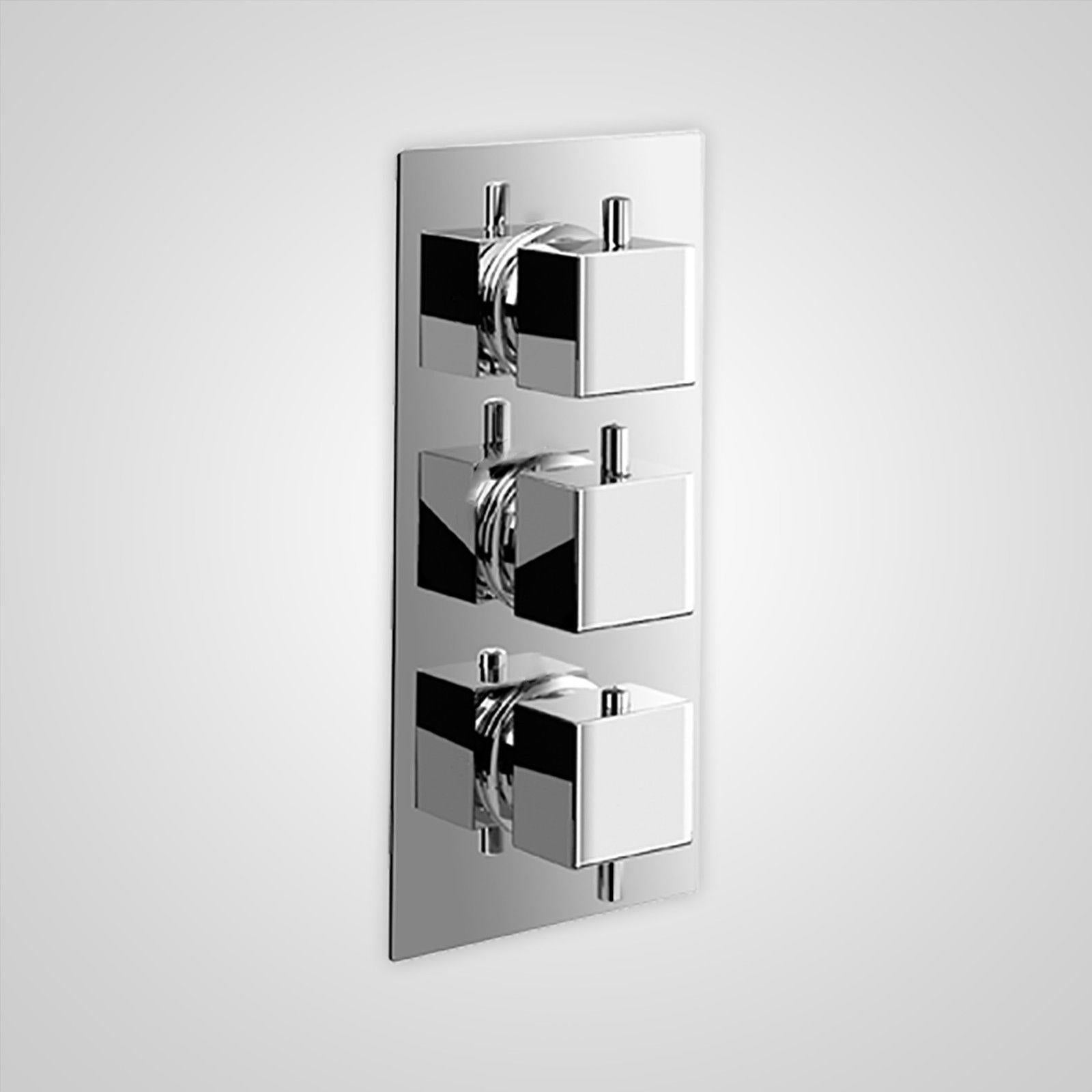

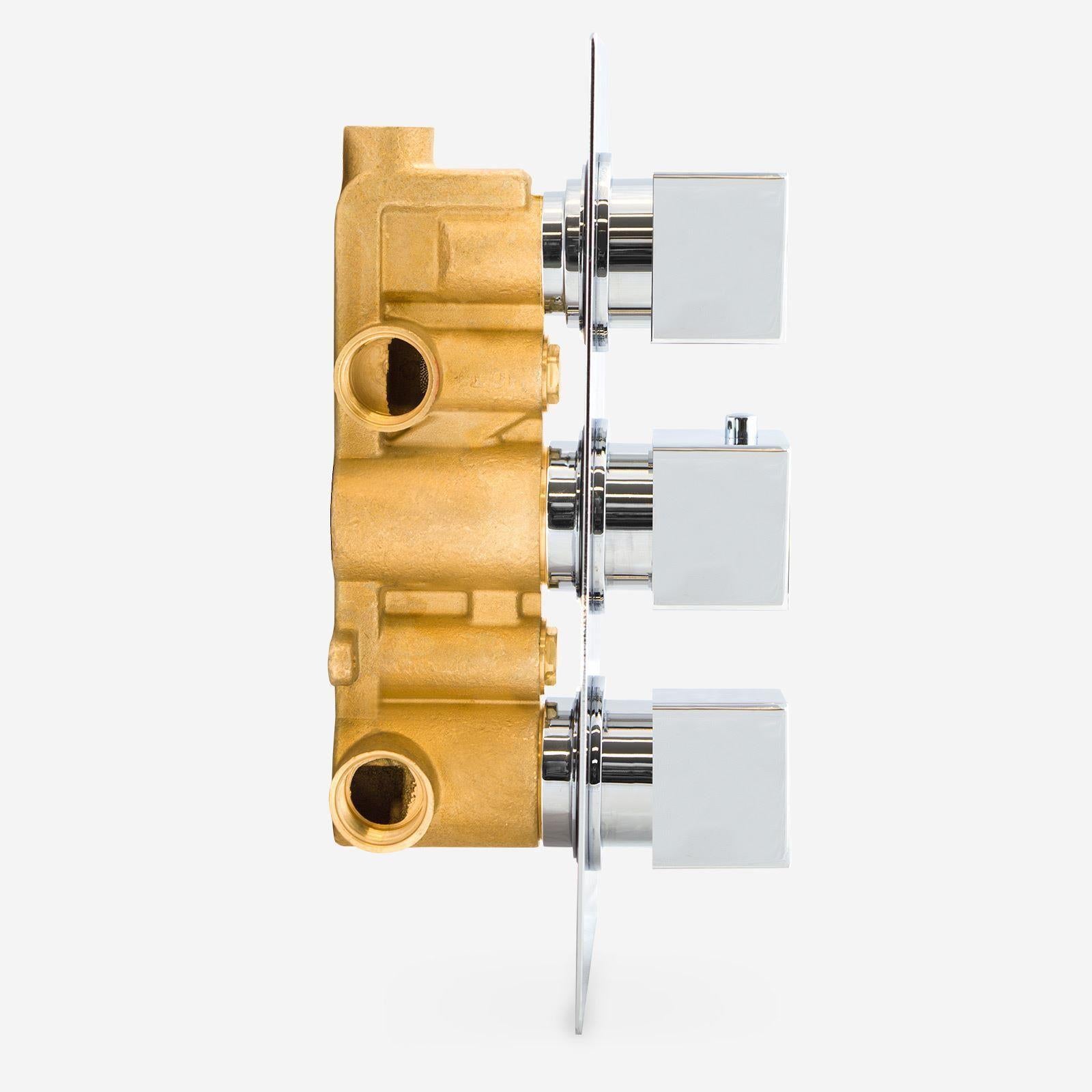

Thermostatic Concealed Valve Features
Top dial: controls water to 2 outlet diverter
Middle dial: temperature control
Bottom dial: controls water to 1 outlet diverter
High Quality Design
Chrome Plated
Thermostatically controlled
Manufactured from highly durable brass
Operating range 20: 50 deg C with 38 deg C safety button
Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
Chosen temperature maintained to within +/-1ºC
Pre-set maximum temperature
Automatic shut off in event of water cold supply failure
UK standard size fitting

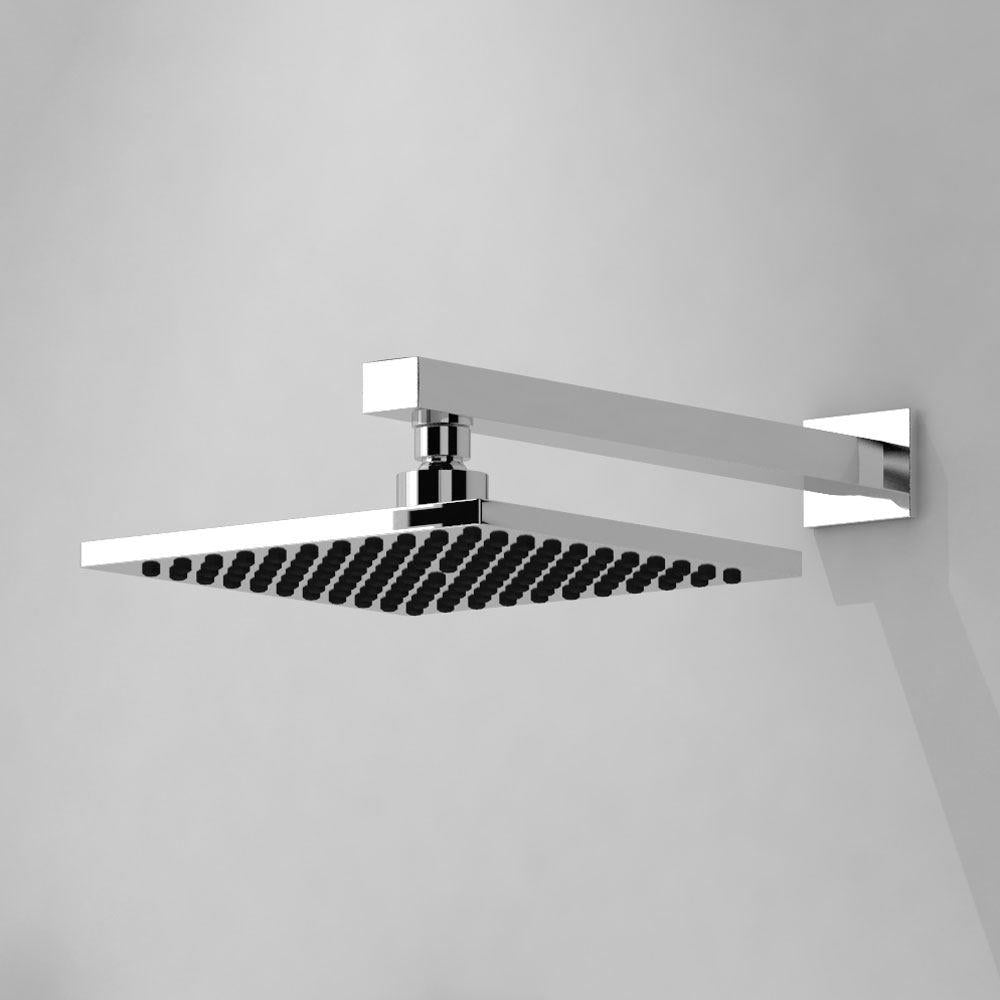

Shower Head with Wall Mounted Details
Shower head
Stainless Steel
Solid Brass Arm
Chrome Finish

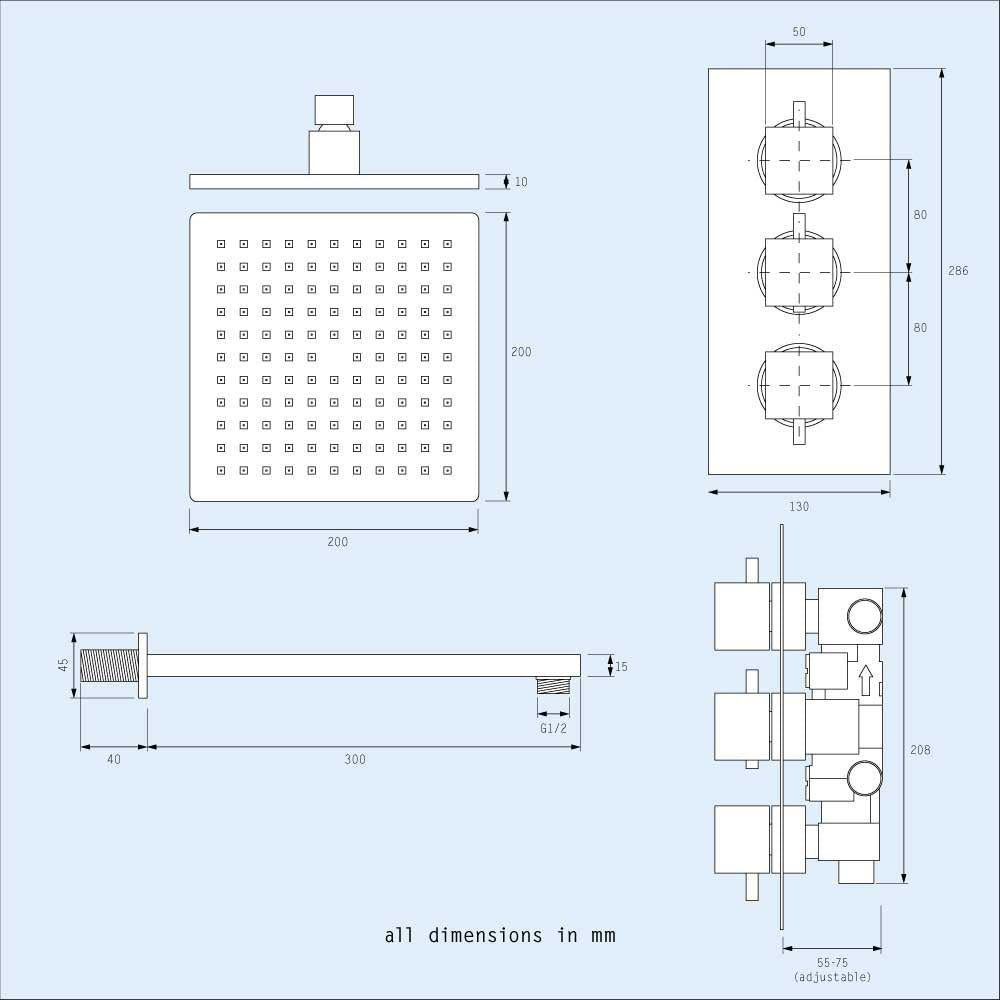

Specifications
Material: Solid Brass
Style: Modern
Finish: Highly Polished Chrome
Shower Head: 8" (200mm)
Shower Arm: 300mm

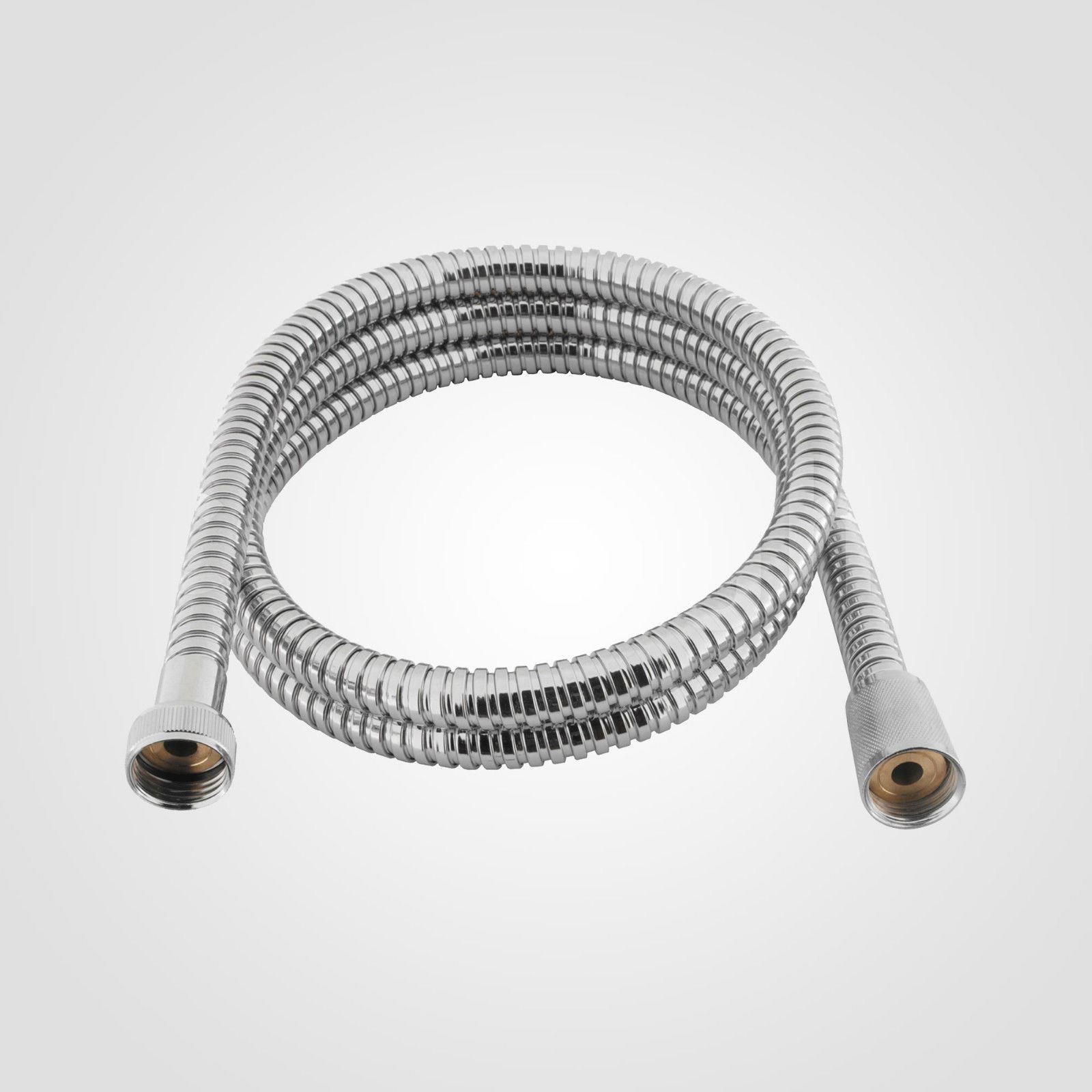

Shower Hose: 1.5m Flexible Stainless Steel

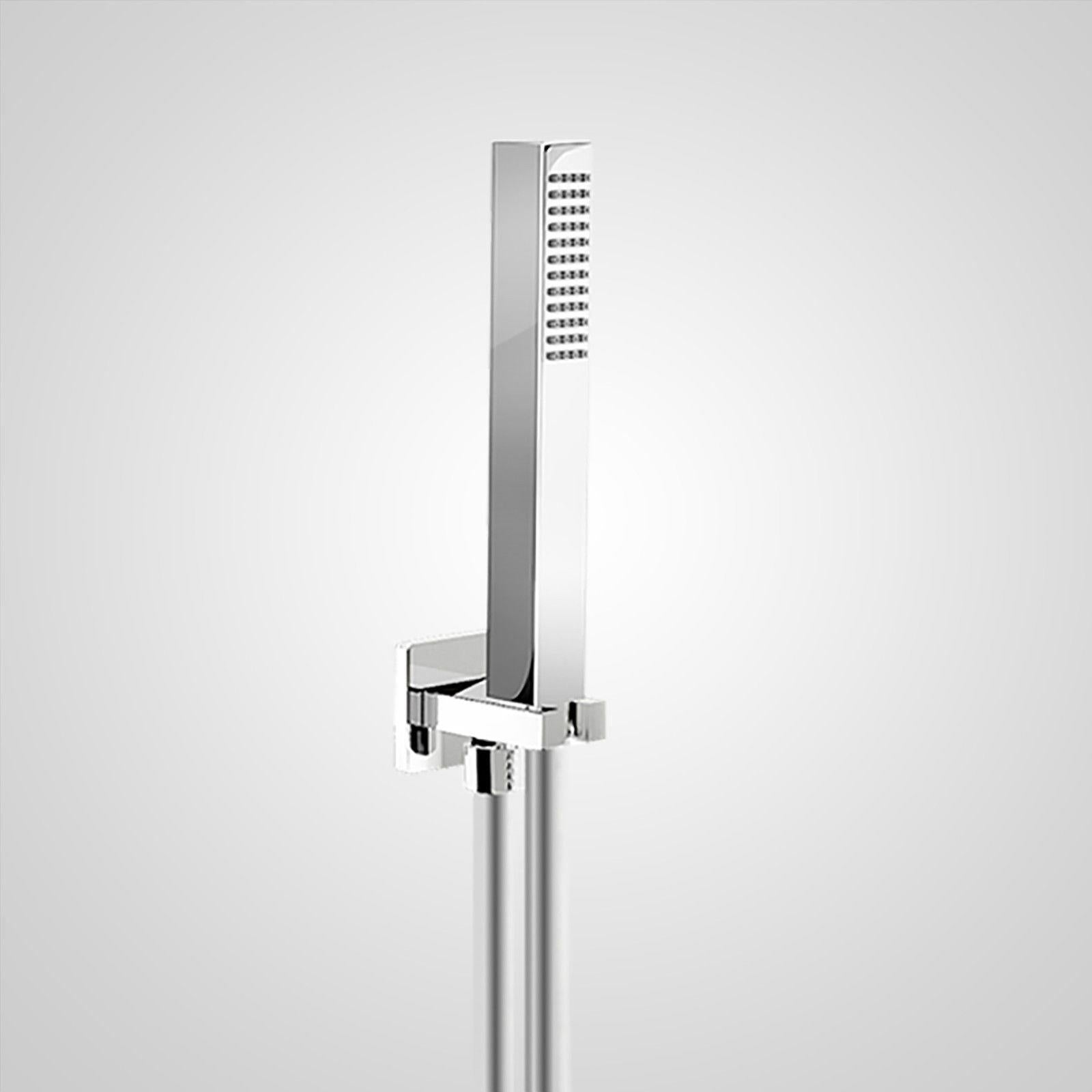

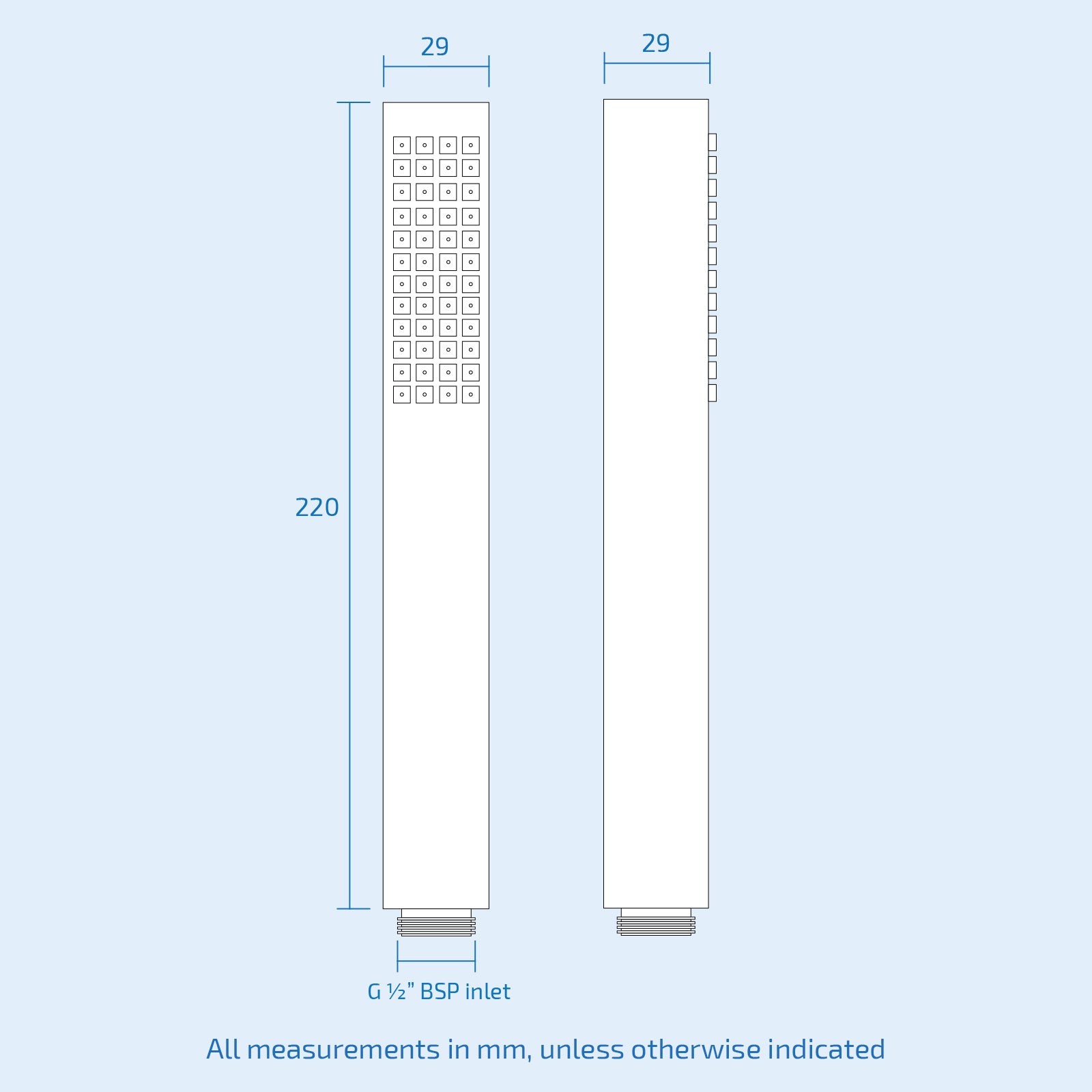

Shower Handset: Chrome Plated
Anti-Scalding: Built-In Device
Child Friendly: Yes
Temperature Range: 20–50°C
Controls: 3
Diverter: Yes
Valve: Solid Brass Construction
Mounting Type: Wall Mounted
Structure: Fully Integrated
Minimum Operating Pressure: 0.2 Bar
Maximum Operating Pressure: 6 Bar
Guarantee: 10 Years

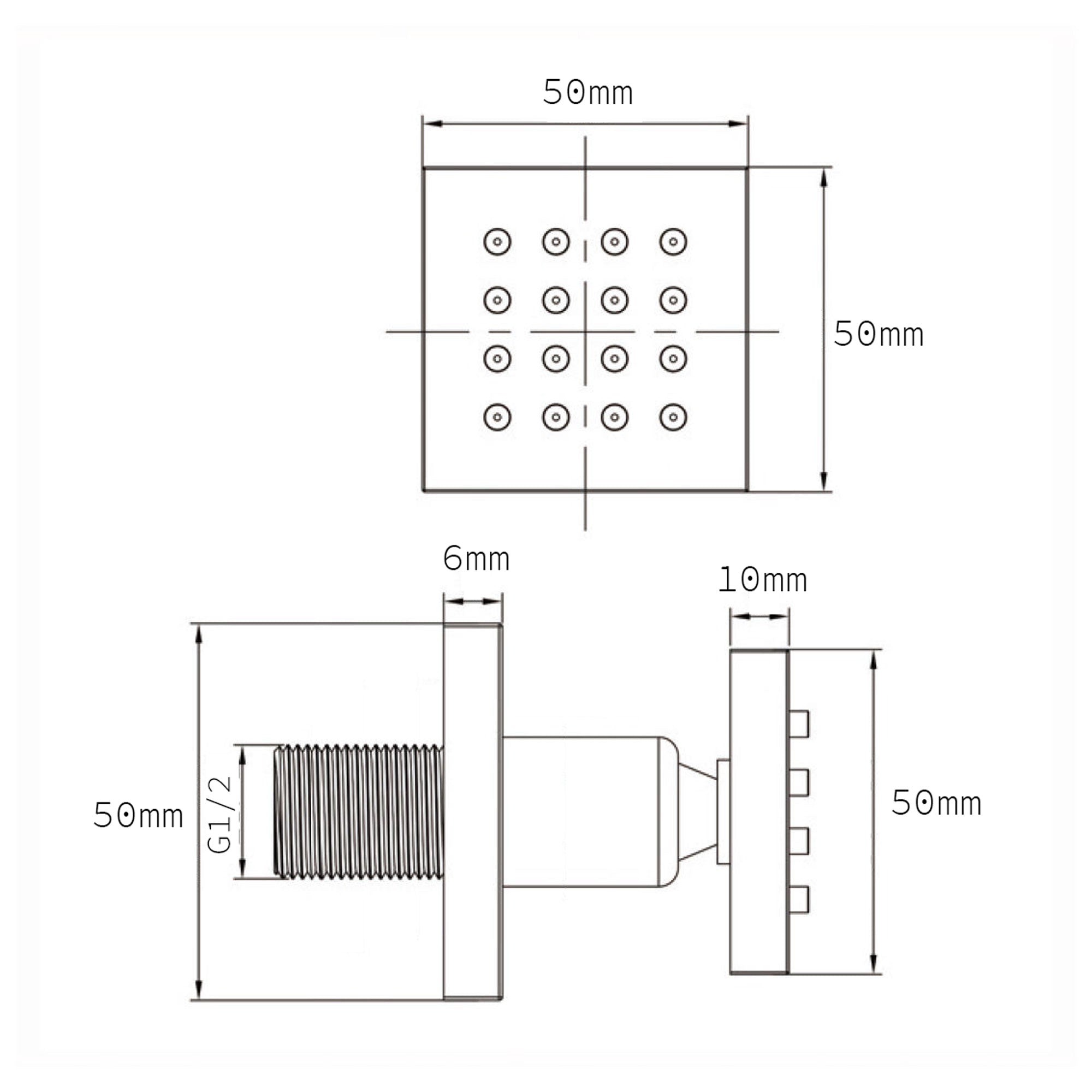

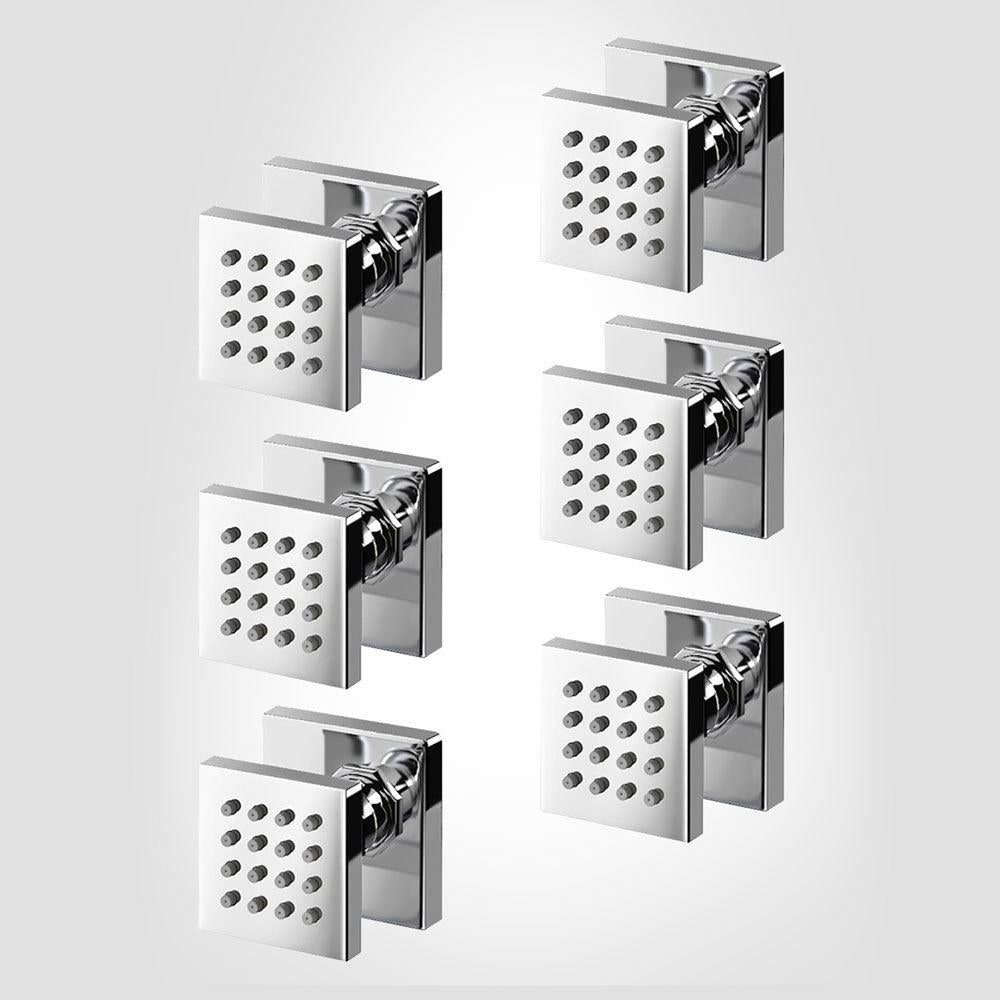

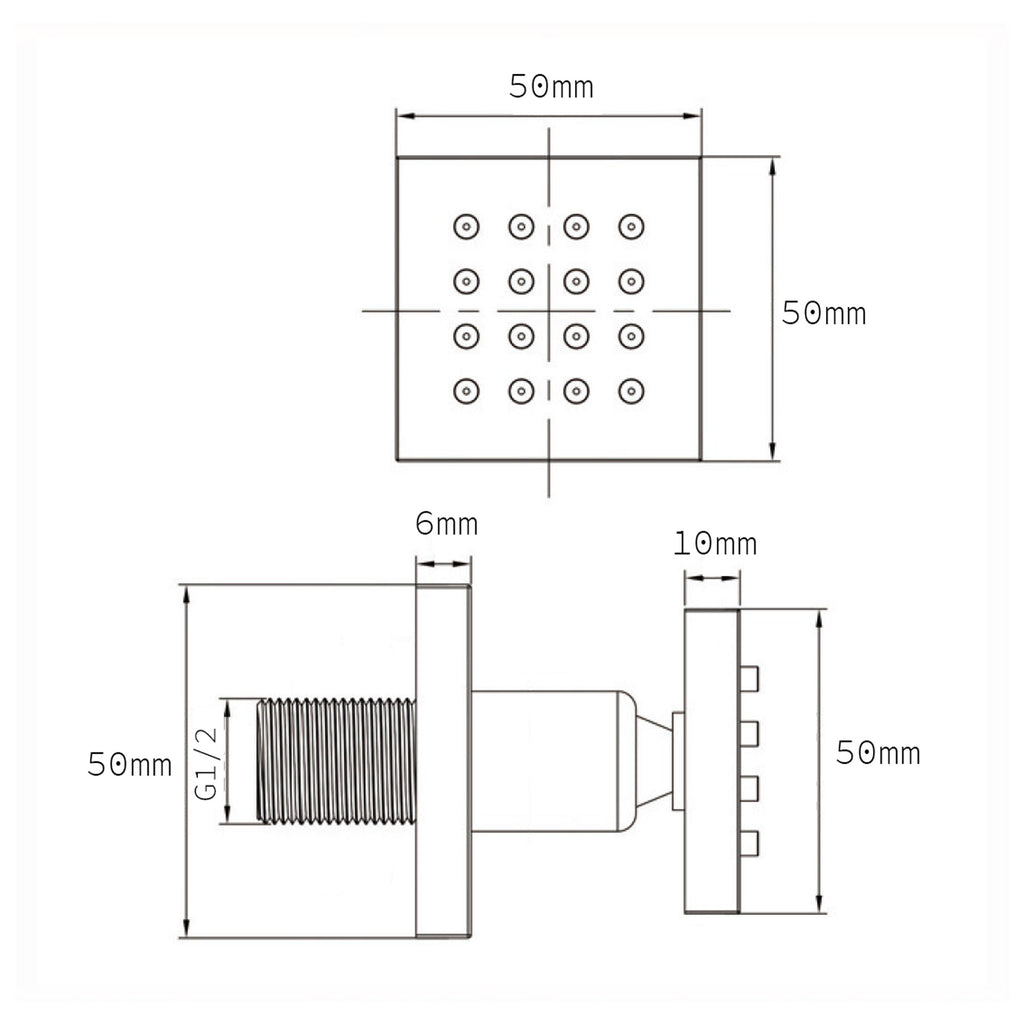

Body Jets Feature
Chrome plated round body jets
Chrome finish: long lasting high shine
High quality solid brass: will not rust or corrode
Standard 1/2" connection
Easy to clean rubber nozzles
Technical Information
Suitable for the following water systems:
Combination boiler systems
Gravity-fed systems (only with a pump)
MegaFlo systems
Pumped hot water systems
Un-vented hot water systems
Standard pressurised hot water cylinder type systems
