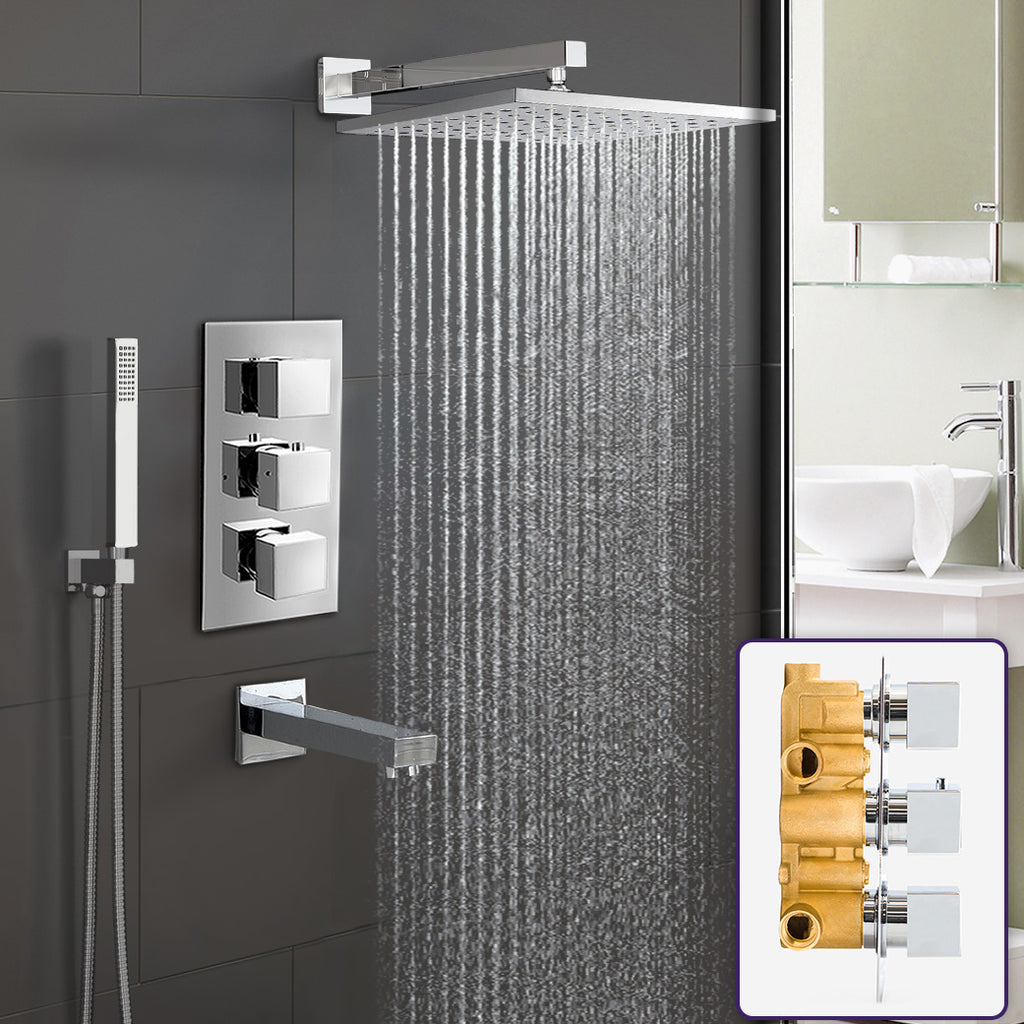

This square concealed thermostatic mixer valve shower set is a perfect addition to any bathroom. The thermostatic mixer valve gives you complete temperature control with a built-in anti-scalding device, so you'll never have to worry about a drop in temperature again.
All our valves have isolators and non-return valves meaning that they can be accessed from the front so, if a problem occurs it can be easily resolved without removing the valve from the wall. Most competitors' valves do not have this feature.
Please note: This product comes with a 10-year guarantee.
Thermostatic Valve
- Top Dial - Controls water to 1 outlet diverter
- Middle Dial - Temperature Control
- Bottom Dial - Bottom Dial - Controls water to 2 outlet diverters
- WRAS Approved valve
- Chrome Finish
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in nonreturn valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature is maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in the event of water cold supply failure
- UK standard size fitting
Shower Head
- Wall Mounted
- Chrome Finish
- Easy clean anti-limescale rubber jets
- 200mm square shower head, with a high-shine chrome finish
- Provides an even spray and full water coverage
- The Swivel joint allows you to adjust the angle of the spray
Suitable For The Following Water Systems
- Minimum Pressure: 0.5 bar
- Maximum Pressure: 7.0 bar
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Standard pressurised hot water cylinder-type systems
Package Contents
- 1 x Thermostatic Concealed Valve
- 1 x Shower handset
- 1 x Shower head and shower arm
- 1 x Stainless steel shower hose
- 1 x Rectangular bath filler spout
- 1 x Wall connector and brackets
