Rejuvenate the look of your bathroom without compromising on functionality. Constructed from solid brass, with modern ceramic disc technology, our stylish concealed thermostatic shower mixer valve is perfect for creating a new minimalistic look to your bathroom. The mixer valve mounts onto the wall making your shower look less cluttered and bulky and the thin rectangular back plate neatly conceals all pipe work, adding an exceptional sleek finish.
Featuring 3 square dials with short levers for fingertip control, the mixer valve supplies water to 2 outlet diverters and is finished in stunning chrome. The thermostatic showering can be accessed via the 3 dials 2-way easy-to-operate dial controls - separate controls for temperature and flow; giving you total temperature control from an operating range of 20 - 50 deg C, with a safety button at 38C. A coordinating minimalistic ultra-thin shower head and luxury handset finish off the set.
Please Note: This product comes with a 10-year guarantee.
Thermostatic Valve Features
- Top dial - controls water outlet diverter (Shower Head)
- Middle dial - temperature control
- Bottom dial - controls water outlet diverter (Shower Handset)
- High-Quality Design
- Chrome Finish
Thermostatically controlled
- WRAS Approved
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built-in nonreturn valves to prevent backflow and filters to protect the thermostatic mechanism
- Chosen temperature is maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in the event of water cold supply failure
- Dimensions: View the dimension image provided
- UK standard size fitting

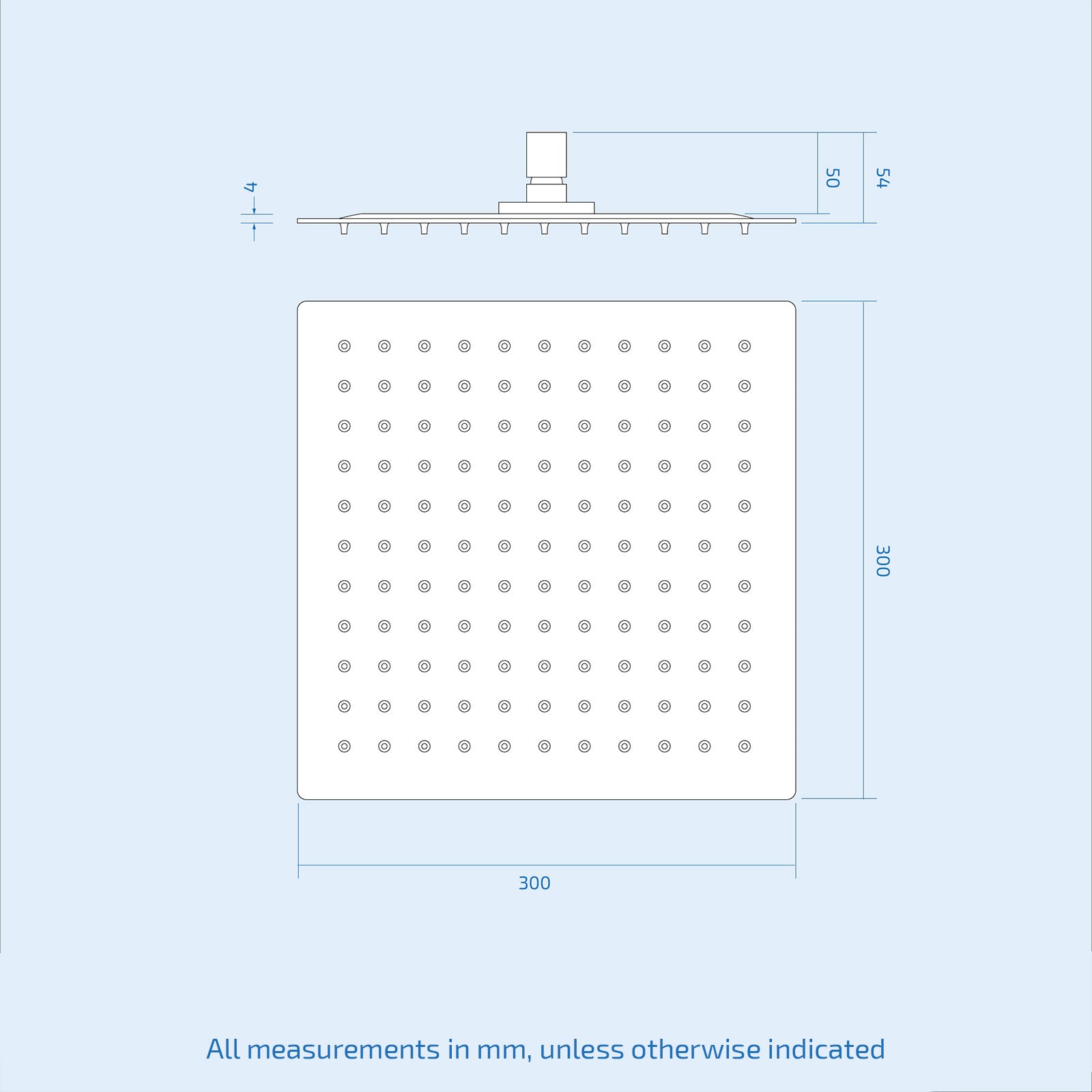

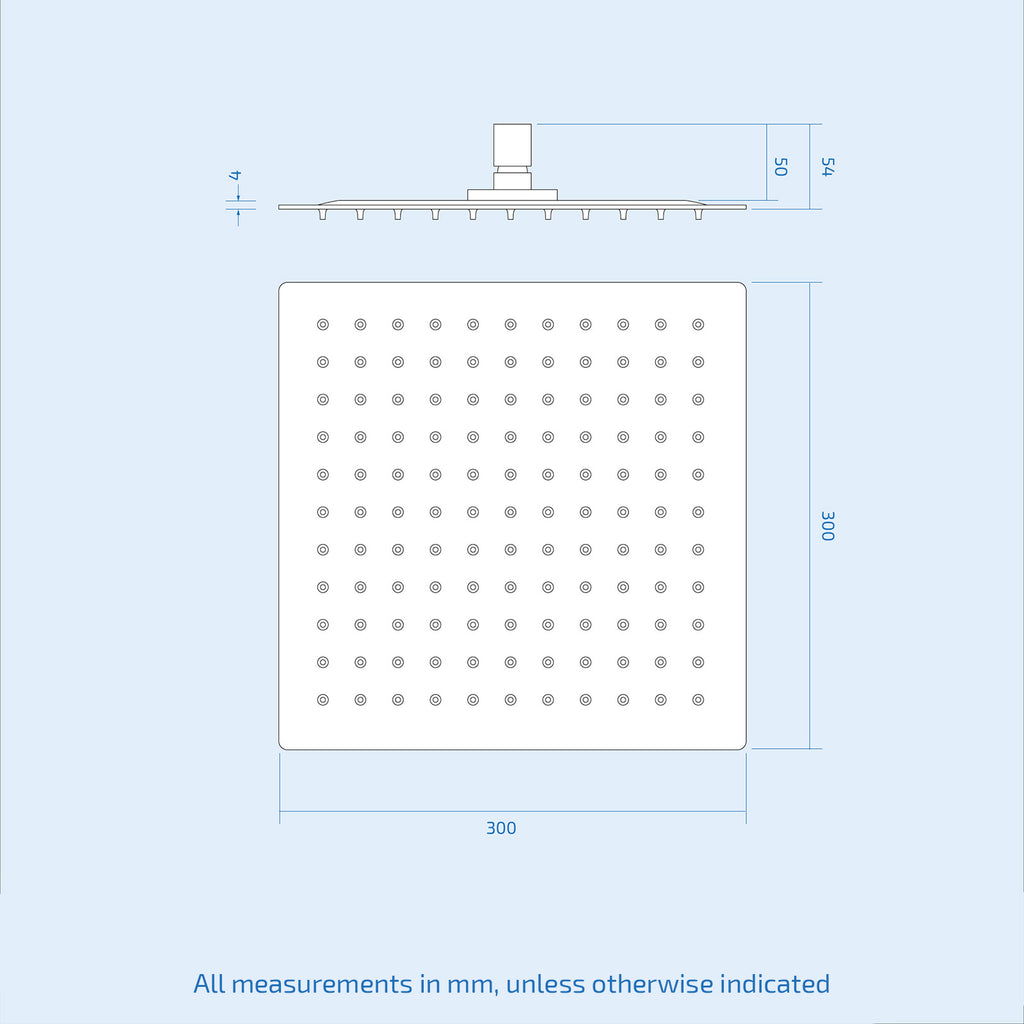

Square Ultra Thin Shower Head 300x4mm
- Chrome-plated stainless steel
- Finished in polished chrome ensuring a highly reflective mirror finish
- Solid brass swivel elbow for ease of use
- Durable and long-lasting

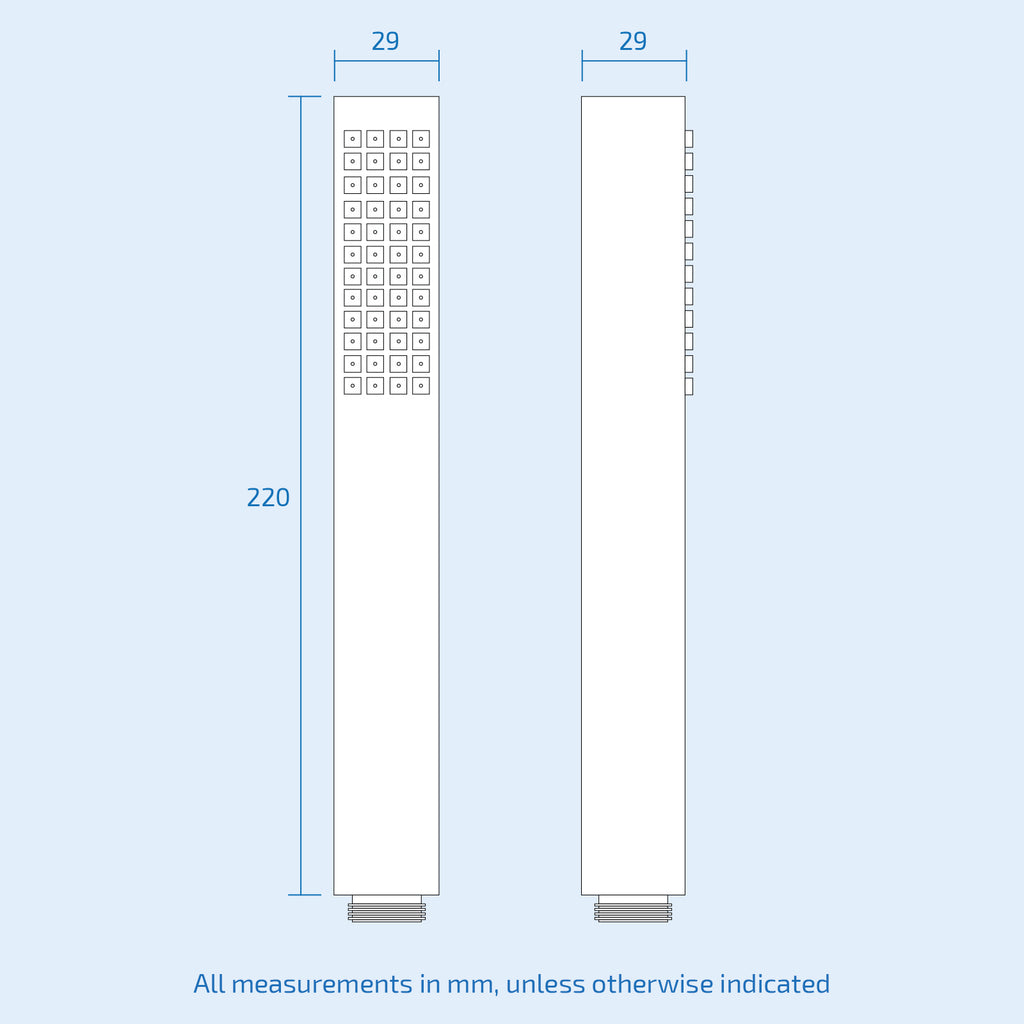

Rectangle Shower Handset
- Easy rub clean faceplate, anti-clog, soft, rubber nozzles to remove scale build-up
- Watertight to minimise the possibility of water leakage
- Easily fits the shower hose
- ABS plastic with chrome plating
- Finished in polished chrome ensuring a high-quality reflective mirror finish
- 380mm Rectangular Wall Mounted Shower Arm
- Solid Brass with chrome plating
- ½ Inch Shower Head Connection
- Slim Square Chrome Handset Holder
- Wall Bracket and Hose Connector with chrome plated finish
- Durable and resistant to corrosion
Suitable For The Following Water Systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum of 1.0 bar water pressure
Package Contents
- Orta Square 3 Dial 2 Way Chrome Concealed Thermostatic Shower Mixer Valve
- Square Ultra Thin Shower Head 300x4mm
- Rectangle Shower Handset
- 380mm Rectangular Wall Mounted Shower Arm
- Slim Square Chrome Handset Holder
- 1.5m Stainless Steel Shower Hose
