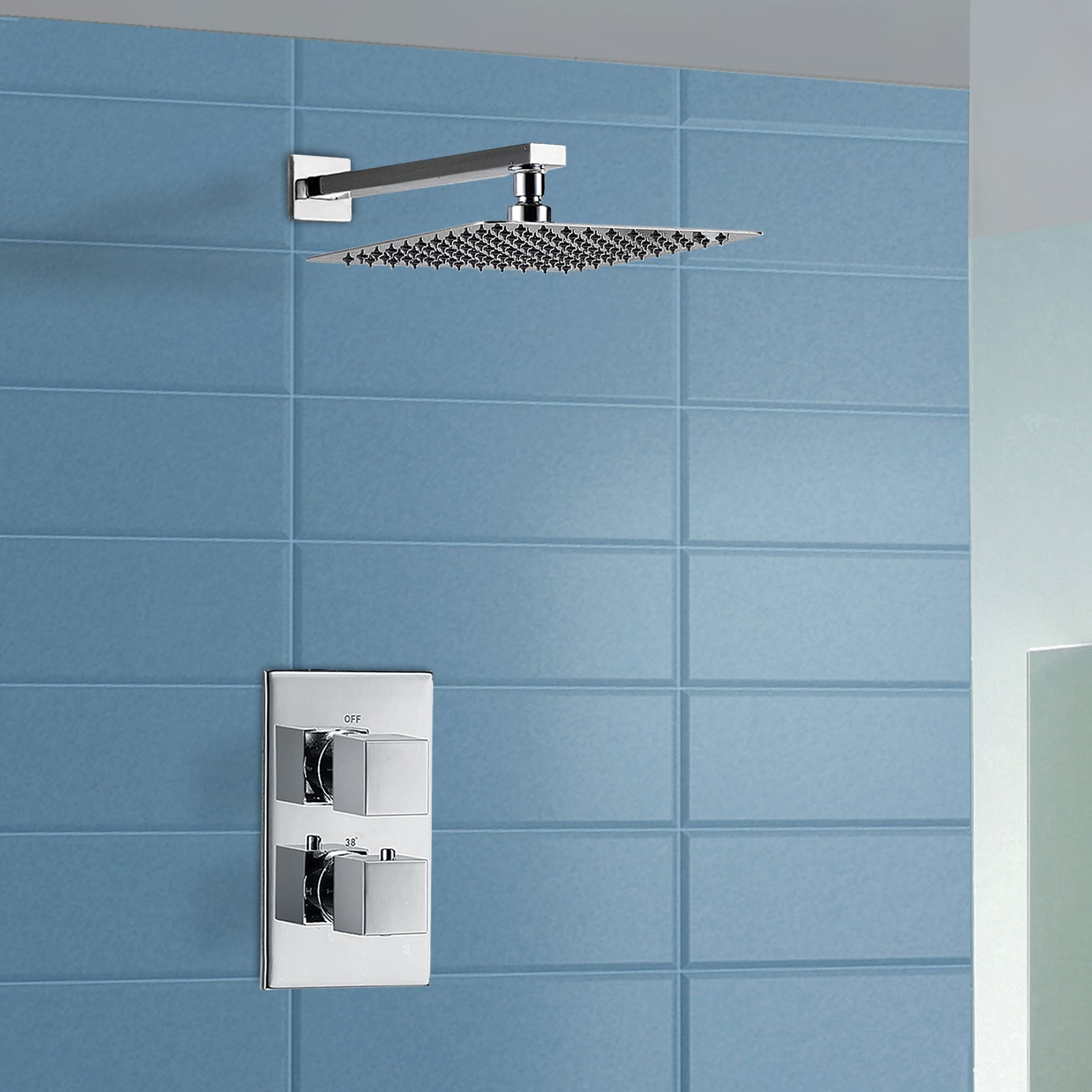

Slim 2 Dial 1 Way Concealed Square Thermostatic Shower Mixer

They also come with a 10 Year Guarantee.

Product Specification

• Material: Solid Brass
• Finish: Chrome
• Minimum wall depth of 87mm required
• Minimum Pressure: 0.2 Bar
• Maximum Pressure: 6
• Inlet Connection Size: 1/2"
• Outlet Connection Size: 1/2"
• Additional Feature: Solid brass single cast body, non return valve
• Guarantee: 10 years

2 Dial 1 Way Thermostatic Mixer Valve Feature

• Top Dial - Controls water to 1 outlet diverters
• Bottom dial - temperature control
• High Quality Design
• Chrome Finish
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 - 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

Working Requirements

Our thermostatic showers work on water systems that produce a minimum of 0.2 bar water pressure. This can be achieved by using one of the following systems:

• Combination boiler systems
• Gravity fed systems (only with a pump)
• Megaflow system
• Pumped hot water systems
• Un-vented hot water systems
• Standard pressurized hot water cylinder type systems

Package Includes:

• Concealed thermostatic valve
• Brass Slim shower head and shower arm
