Violet Modern Round 2 Way Concealed Thermostatic Shower Mixer Valve - Black Matte

This is a modern but effective way, it is efficient and you wont have to feel the fluctuation in temperature when you shower. The concealed thermostatic shower mixer allows you to control the flow and temperature of the water giving you more control over your shower experience.



Description

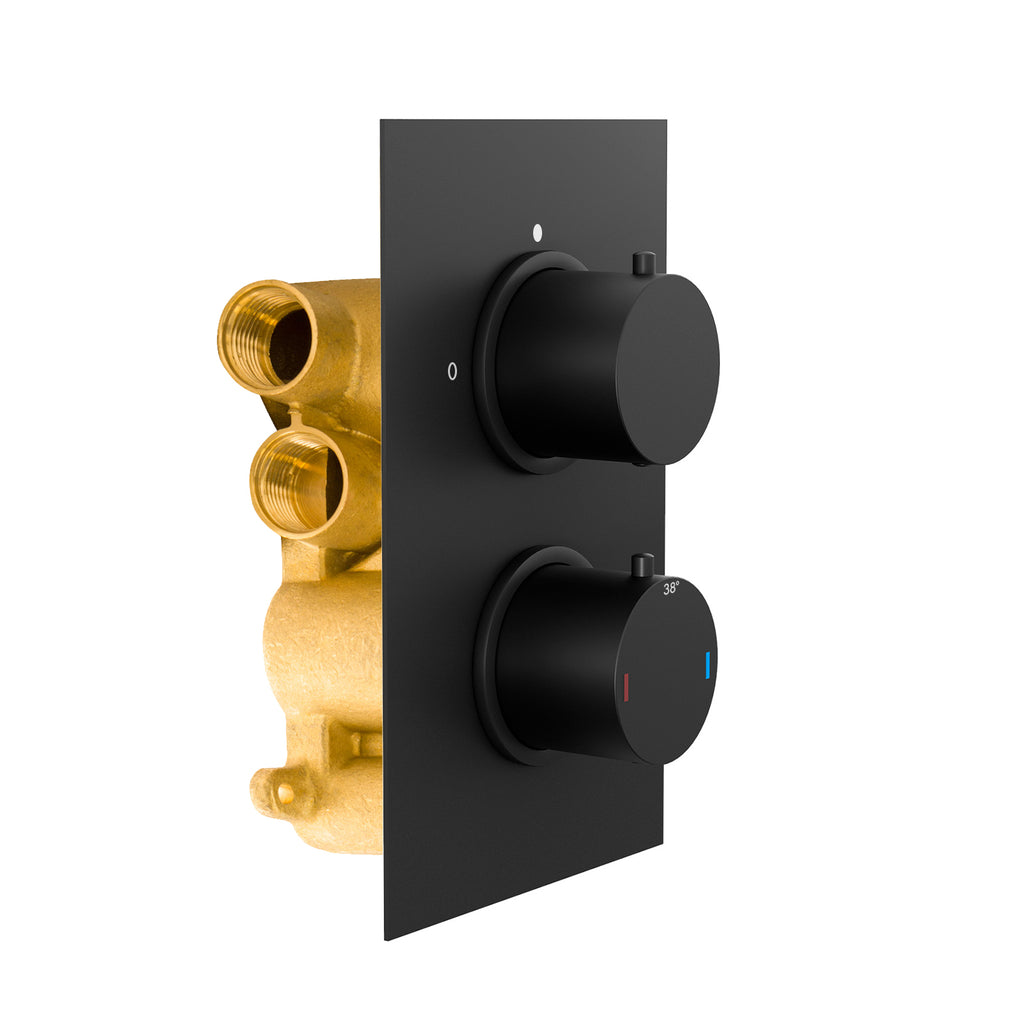

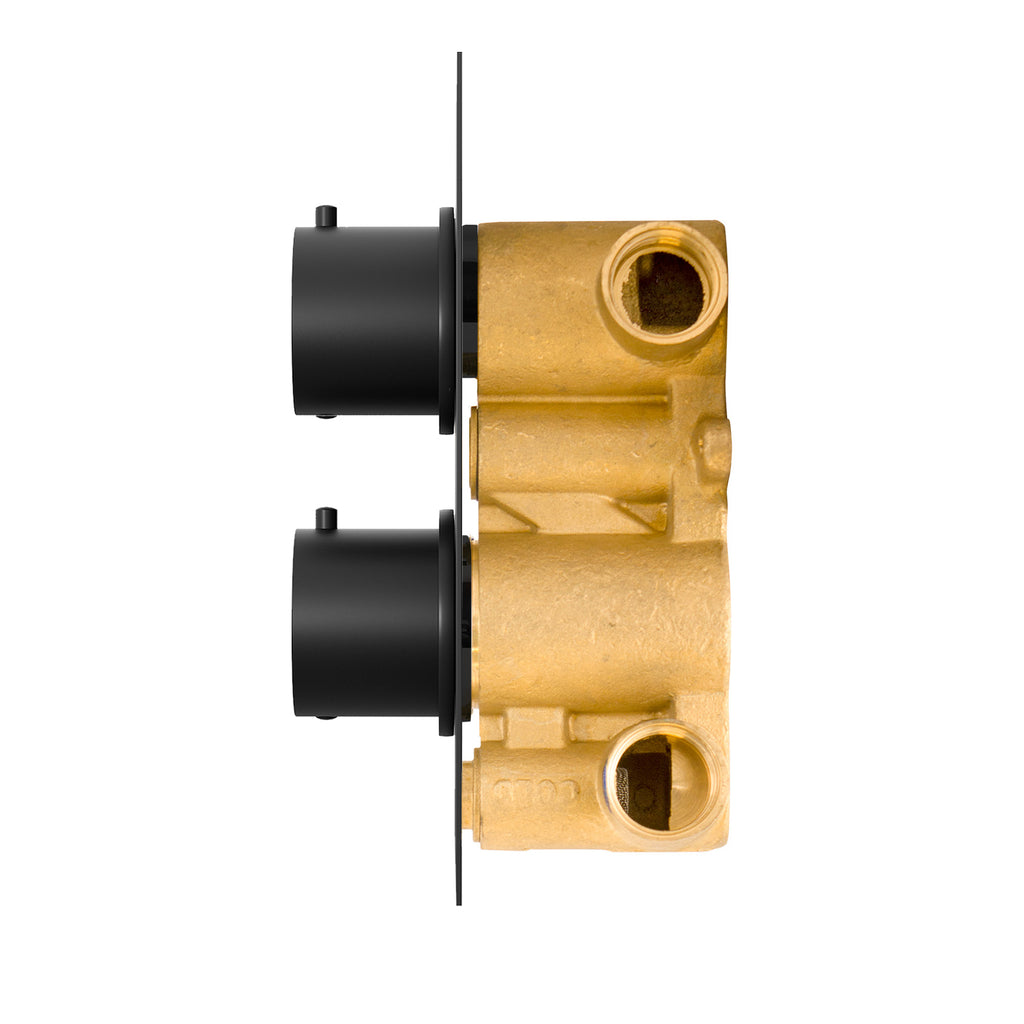

The Violet concealed thermostatic shower valve is a striking round design. This shower valve is great for installing in a concealed arrangement, linked to a fixed shower head.

This concealed valve is best paired with on outlet, i.e a main shower head.

The Violet concealed shower valve has two easy controls, for temperature and flow. The valve body comes with a contemporary square face plate.

Please note: This product comes with a 10 year guarantee.





Specifications

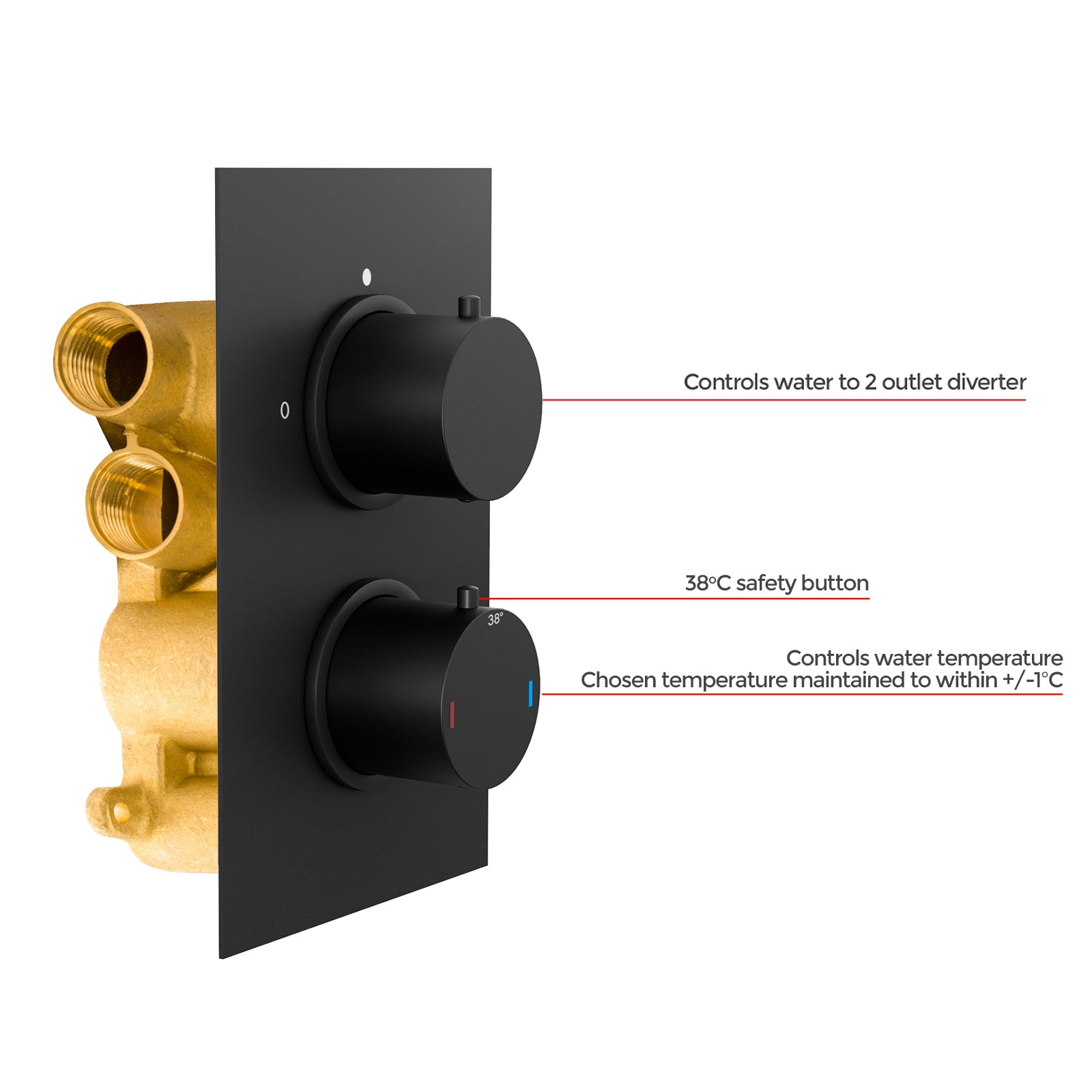

• Top Dial - controls water to 2 outlet diverter
• Bottom Dial - temperature control
• Black matt finish
• Durable and solid brass construction
• Thermostatically controlled
• Operating range 20 - 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC.
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting, Inlet 3/4", Outlet 3/4"



Technical Information:

Suitable for the following water systems:

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum pressure of 0.5 bar to maximum 7.0 bar



Package Contents

• 1 X Concealed thermostatic mixing shower valve
• 1 X Face plate
• 1 X Fittings
• 1 X Instructions
• 2 X Dials
